Q.Lign T.41 | with Q.Grip clamps

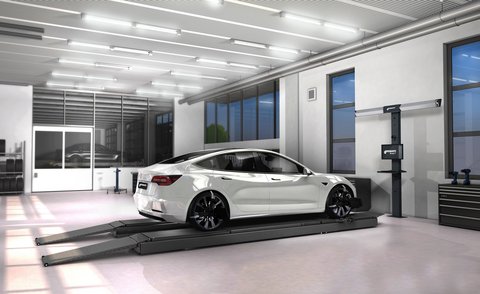

Q.Lign T.41 with floor-mounted support column, turnplates and Q.Grip wheel clamps. Operation via 27" monitor. For wheel alignment professionals.
Article number: 1 690 800 002
Ultimate productivity - vehicle after vehicle
The T-Series builds on the existing Q.Lign platform and focuses entirely on wheel alignment. With Q.Lign T.41, workshops raise the bar even higher and can thus exploit their full service potential.
Measuring at the highest level
- Camera beam measures permanently from a height of 2.8 meters
- No motor, no winch, no wear and tear
- No up, no down, no injuries or damage
- No movement, no matter if short or long wheelbases
Everything perfectly in sight
- Four wheels, four cameras
- Separate camera for the rear axle for more accurate toe values on the front axle
- Install anywhere within 1.8 to 3.3 meters of the front axle
- Measure and adjust from 0 to 2 meters platform height at any time
Work smarter, not harder
- All targets work on any wheel reduces setup times and setup errors
- Active MEMS Technology: Constant measurement against gravity for uncompromising accuracy
- Caster sweep at floor level without the need for a stool or ladder
- Access to clear and easy-to-understand PDF reports from anywhere inside your shop
The world's first web-based wheel aligner
- Eliminates need for trolley and PC and creates more space
- Incredibly efficient with up to 95% power savings compared to PC-based systems
- Stream-to-X: Access software on any TV, PC, laptop, tablet or smartphone
- Intuitive software, streamlined operations, more productivity
- Easy integration of Q.Lign into your shop's daily processes and system
Q.Grip clamps: the last step before Touchless
- 5x faster than conventional clamps
- No removal of hubcaps
- No scratching of rims
- From 21" to 33" in under a second, no know twisting
Space requirement
- Minimum height of 2800mm
- Minimum clearance of 2800mm on four-post lifts
Scope of delivery
- Camera beam with 4 cameras
- Column with tray
- Q.Lign display module
- 4x targets with AutoID
- 27" monitor, keyboard, mouse
- Brake lock and steering wheel lock
- Front turnplates and filling pieces
- Q.Grip clamps (525-835mm wheel diameter)
- Storage for Q.Grips
- Key Card 365 for international vehicle specs
| Weight | 119 kg |
|---|---|
| Packaging unit | 1 Piece(s) |
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
| Individual toe front/rear axle | Ja |
| Total toe | Ja |
| Toe-out on turns | Ja |
| Camber front/rear axle | Ja |
| Caster | Ja |
| SAI | Ja |
| Set-back | Ja |
| Thrust angle | Ja |
| Sensor count | 4 Piece(s) |
| Data transmission type | kabellos |
| Measuring system | 3D mit Messbalken (fixiert) |
| Max. clamping capacity | 835 mm |
| Display size | 10 " |
| Power consumption | 65 W |
| Set-up width | 2595 mm |
| Wheel base | 1750 - 4600 mm |
| Run-out compensation | Ja |
| Individual toe front axle | Ja |
| Individual toe rear axle | Ja |
| Camber front | Ja |
| Camber rear | Ja |
| Set-back front axle | Ja |
| Set-back rear axle | Ja |
| Geometric centre line | Ja |
| Included angle | Ja |
| Ride height modified vehicle specs | Yes |
| Vehicle dimensions live | Ja |
| Set-up height | 2745 mm |
| Packaging length | 2950 mm |
| Packaging width | 820 mm |
| Packaging height | 540 mm |
| Gross weight | 170 kg |
| Country of Origin, customs | DE |
| Min. clamping capacity | 525 mm |
| Number of languages (software) | 30 |
| Distance camera - center of turntable | 1800 - 3300 mm |
| Clearance front posts of lift min. | 2800 mm |
| Vehicle database update Q.Lign | Key Card 365 | 1 690 002 019 |
|---|---|
| Magnetic clamps for wheel bolts | 100mm | 1 690 701 521 |
| Magnetic clamps for wheel bolts | 75mm | 1 690 701 508 |
| Self-centering quick clamp for Tesla | 1 690 380 161 |
| Self-centering quick clamp for Porsche | 1 690 380 010 |
| Self-centering quick clamp for Porsche | 1 690 301 003 |
| Central clamp Porsche Carrera GT | 1 690 301 002 |
| Central clamp Porsche 911 GT3 and Turbo | 1 690 380 002 |
| Self-centering quick clamp for Ferrari | 1 690 381 299 |
| Self-centering quick clamp | for Lamborghini | 8 900 380 016 |
| Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs. | 1 690 311 112 |
| Adapter set Q.Grip | for Q.Lign | 4 pcs. | 1 690 101 010 |
| ProClamp wheel clamp | 13 - 23" | 1 pc | 1 690 100 001 |
| Quick clamp Mercedes-Benz | OEM | 1 690 801 002 |
| Quick clamp BMW | OEM | 1 690 801 001 |
| Extension set for Multi-fit clamps | 23 - 28" | 1 690 311 113 |
| Mechanical aluminum turntable Standard | 1 690 501 001 |
| Mechanical aluminum turntable Precision | 1 690 401 028 |
| Electronic aluminum turntable without connecting cable | Standard | 1 690 401 011 |
| Electronic aluminum turntable without connecting cable | Precision | 1 690 401 013 |
| Filling piece for aluminum turntable | 1 690 702 082 |
| Filling piece for aluminum precision turntable | 1 690 102 041 |
| Storage tray | Q.Lign T-Series | 1 690 802 049 |
