Headlight testing device MLD 815 | TESLA

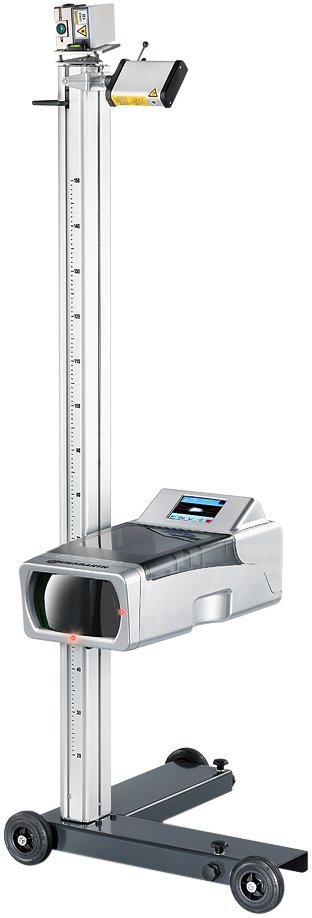

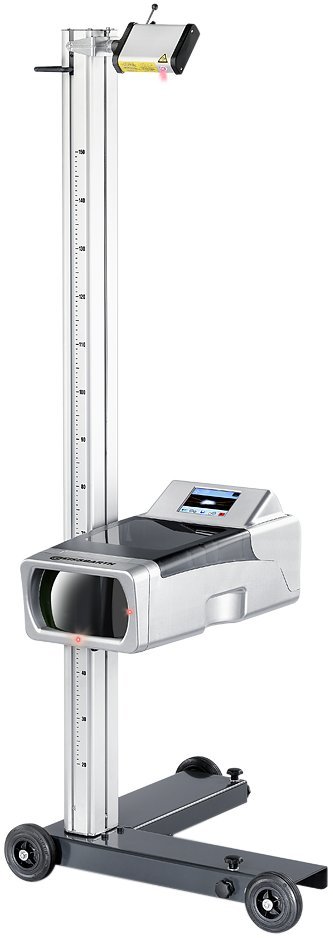

Beissbarth MLD 815 for Tesla - Digital headlight measurement and adjustment

Article number: 1 692 104 344

TÜV certificate in line with StVZO § 50 - TPN 2023-05-2208484: MLD 815 is TÜV-certified by prototype technical release examination in accordance with the directives for testing headlight adjustment/test equipment (German Road Traffic Type-Approval Law StVZO §50 paragraph 5).
The alignment (leveling) of the MLD 815 on the testing bay corresponds to the latest requirements.
Automatically compensates inclines of headlight tester of up to 2%
Two-dimensional spirit level for horizontal leveling of the optical box
Levelable 3-Wheel base system fitting for all common rail systems
Levelable rail system for above and inground installation (3 m) as optional available accessory

Cross- and alignment laser for precise positioning
For all light sources (Xenon, Bi-Xenon, LED, Bi-LED, Halogen) and glare-free high-beam systems (Dynamic Light Assist - DLA, Matrix, ILS Ford)
All types of vehicles (passenger cars, trucks, motorcycles)
All types of headlights (main headlights, fog lamps, auxiliary lamps)
CMOS camera for real-time digital image processing
Built-in printer
Measurement results in real time
Comparison between measured and limit values and unambiguous red/green evaluation
Precise definition of the cut-off line without disrupting blue fringe
Digital LCD colour display (5.7") with 262,000 colours
Touch-screen function (operation with gloves is possible)
Intuitive and simple user guidance
Visual and acoustic signals support the measurement procedure
Menu featuring 7 languages
Operating panel can be rotated by 180° for different areas of application (e.g. for general inspections or for the adjustment at the workshop)
Independent operation thanks to battery - Storage battery Alignment laser: 3 x Mignon AA 1.5 V
Measuring height (optical center): 24 - 145 cm
Measured values: Horizontal and vertical deviation (pitch angle), intensity, roll angle, yaw angle
Digital precision: +/- 1 cm on a 10-meter measuring distance

Optional: visualization on the workshop computer
Displaying of the cut-off line on the PC monitor or TFT screen
Data transfer to PC via WLAN
User interface simplifies intuitive use
Database function
Printing and archiving
Adjustment of the colour scheme by the user: Light/dark background depending on the lighting conditions
Workshop Network Connectivity: Supports Bosch Connected Repair, ASA Network Compatibility is guaranteed

Certificate: CE, TÜV, EMC, FCC, FDA

Operating temperature	5 - 45 °C
Electrical connection	100 - 240 V \| 50 - 60 Hz
Battery voltage (DC)	12 V
Height of light center	250 - 1500 mm
Measuring range lowest stand/highest stand	600 - -600 mm
Light intensity	0 - 150000 cd
Illumination	(1m) 0 - 150000 / (25m) 0 - 240 lx
Storage temperature	-25 - 45 °C
Version	- Digital
Packaging length	650 mm
Packaging width	1790 mm
Packaging height	700 mm
Gross weight	40 kg
Measuring range low beam left/right	1000 - -1000 mm
Measuring range high beam left/right	1000 - -1000 mm
Relative humidity storage	20 - 80 %
Relative humidity, use	30 - 60 %
Radiant power alignment laser	5 mW
Operating voltage alignment laser	3 - 5 V (DC)
Laser class alignment laser	2
Projection alignment laser	130° x 0,4 mrad
Laser diode alignment laser	635 nm
Laser class cross laser	2
Projection cross laser	90° x 0,4 mrad
Laser diode cross laser	635 nm
Radiant power cross laser	5 mW
Operating voltage cross laser	3 - 5 V (DC)

Rail kit 3 m	1 692 105 080
Extension kit for rail kit \| 1.5 m	1 692 105 112
Height-messuring sensor \| for MLD 6xx and 8xx	1 692 105 066
Cover for headlight testing devices	1 692 105 079
Alignment kit for alignment on the vehicle center line Ford requirement \| for MLD 815	1 692 105 180
PC Software Icperform - Headlight	1 692 105 145
Matrix 2 Upgrade \| for MLD 815	1 692 105 269
Ford Matrix \| for MLD 815	1 692 105 288
Skoda Function \| for MLD 815	1 692 105 289
