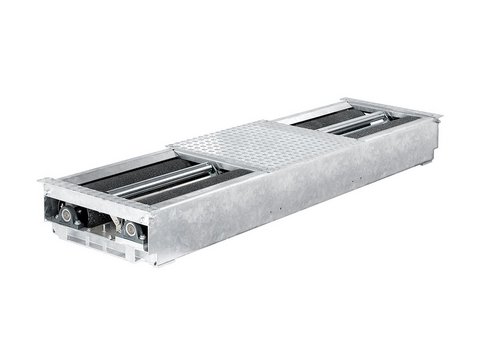

Roller set BD 620 | with ASA Livestream | without axle load scale
400V/3Ph/50Hz | 5.2km/h | 3,7kW | without axle load scale | with ASA Livestream
Article number: 1 691 600 451
Passenger car brake tester BD 620
- Automatic operator prompting – no remote control, no keyboard commands
- Reference database, vehicle history and guide values
- Print-out of vehicle faults with graphical presentation
- Flexible line lengths for easy installation in dialog reception areas (even with suspension tester)
- Up to 4t axle load and track widths of 800 - 2,200 mm
- BNet device bus connects master switch box to roller set and PC trolley
- Control and power electronics integrated into roller set
- Strain gauge measurement system for maximum precision
- Galvanised roller set: Suitable for outdoor installation
- Super automatic mode with test sequence for service and parking brake systems
- Electromagnetic brake for gentle drive-off
- Brake rollers with plastic/corundum coating: Long service life and firm tyre grip
- Rear test roller elevated by 25 mm: Ideal test conditions
- Robust slip roller unit also suitable for drive-through installation
To display results, the BD 620 needs to be combined with a PC-based operating console or with an analog display.
| Max. wheel diameter | 1000 mm |
|---|---|
| Max. rim diameter | 32 " |
| Protection class | 54 IP |
| Length | 660 mm |
| Depth | 250 mm |
| Electrical connection | 3 x 400 V | 50 Hz |
| Width | 2360 mm |
| Max. axle load testable | 2,5 t |
| Test speed | 5,2 km/h |
| Coefficient of friction dry/wet | 0,8 / 0,7 |
| Roller length | 700 mm |
| Roller elevation | 25 mm |
| Motor power | 3,7 kW |
| Min. rim diameter | 10 " |
| Roller diameter | 205 mm |
| Min. test width | 800 mm |
| Max. test width | 2200 mm |
| Min. wheel diameter | 320 mm |
| Roller axle distance | 381 mm |
| Max. drive-over load | 4 t |
| Height difference upper edge of roller to workshop floor | -10 mm |
| Surface coating | - Corundum-coated |
| ASA livestream | ja Standard |
| Trolley with PC and printer | for BD 620 | for BMW | 1 691 701 019 |
|---|---|
| Drive-over plate swiveling | 700 mm | 1 691 601 011 |
| Drive-over plate pluggable | 700 mm | 1 691 601 010 |
| Edge protection for car brake tester BD 4xxx, 700 mm | 1 691 602 000 |
| Installation frame for car brake tester BD 4xxx, 700 mm | 1 691 602 115 |
| BNet license key #3 (ASA-Netzwerk) | 1 691 708 006 |
| Pedal force sensor | for BD620 | cable version | 1 691 601 020 |
| 4-point scale | retrofit kit for BD 620 | 1 691 601 057 |
