Vehicle database update Q.Lign | Key Card 365

• Access to the newest vehicles specs directly from the OEM
• Runtime from activation in the Software Centre: 365 days
• Authorises the licensing of all IAM vehicle databases

Scope of delivery:

• 1x Key Card with access code for online download

Only compatible for Q.Lign software platform!

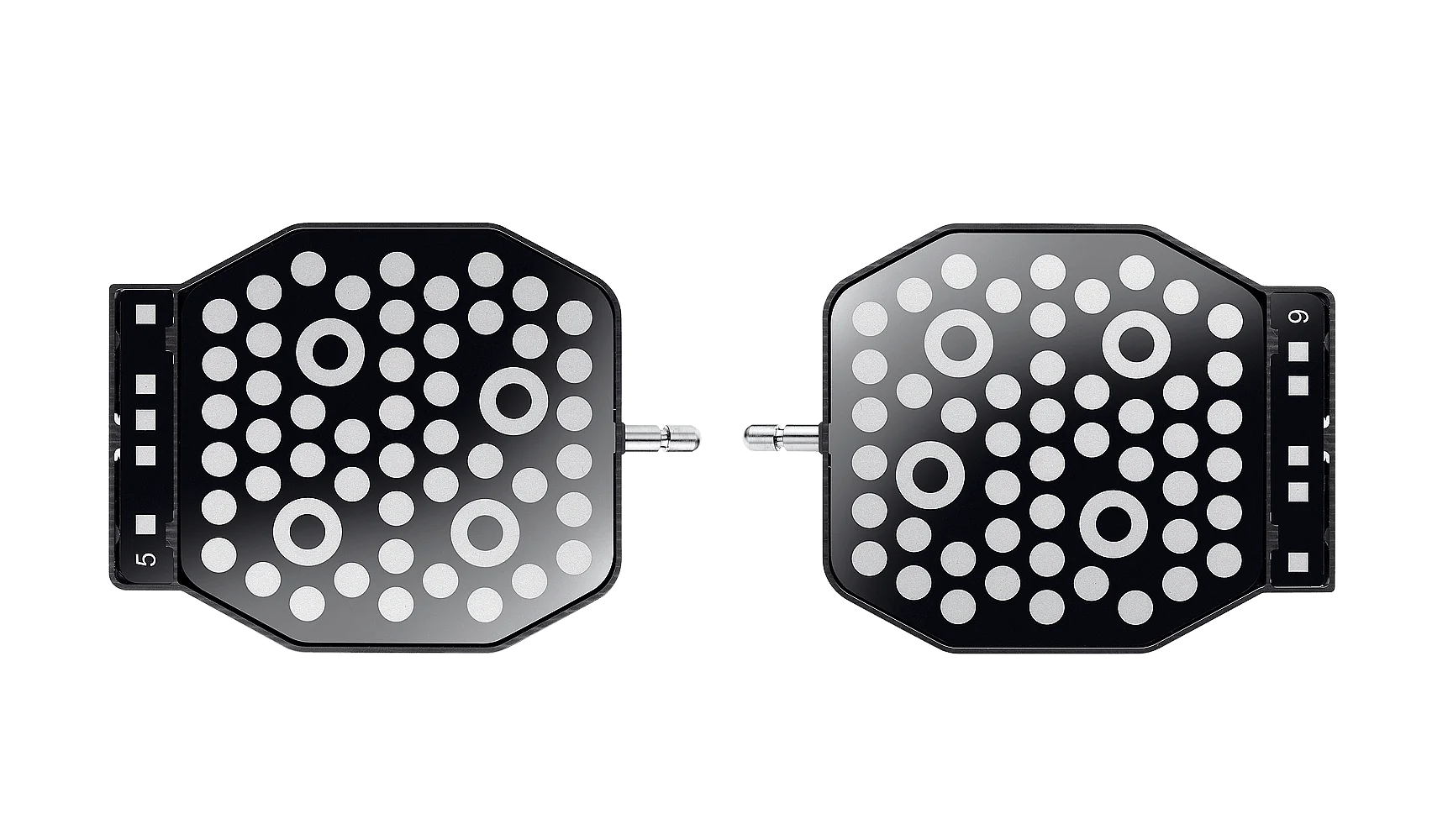

ADAS target boards | for Q.Lign

For ADAS calibration in combination with Q.Lign. Target boards can be permanently installed on the ADAS calibration tool.
Scope of delivery:

• 2x ADAS target boards (Coding ID #5 and #6)
• 2x target covers

Compatible with BBFAS1000 and most third-party ADAS calibration tool solutions.

Powerbox for Q.Lign

• Permanently supplies sensor heads with power (for non-battery powered Q.Lign systems)
• Connection to sensor heads via 10 m (1690203025) or 15 m cable (1690203041)
• Installation of powerbox on post of a four-post lift, the operating console of a scissor lift, or inside the cabinet

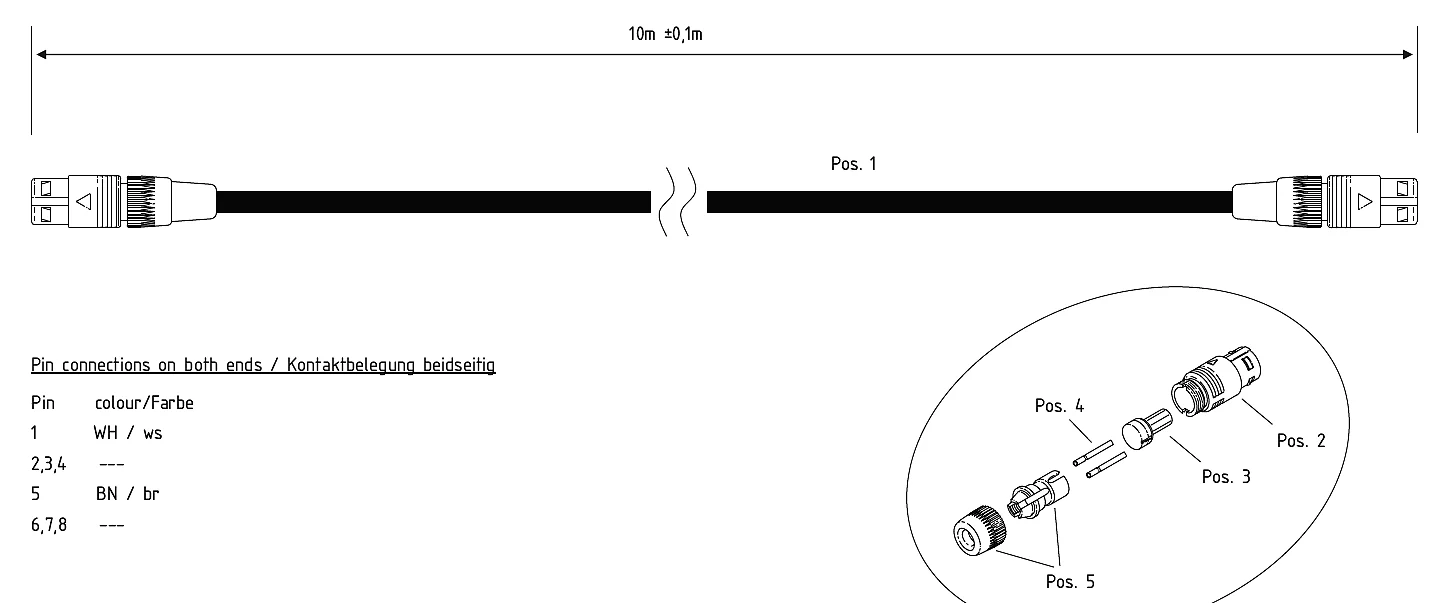

Power connection cable 10 m

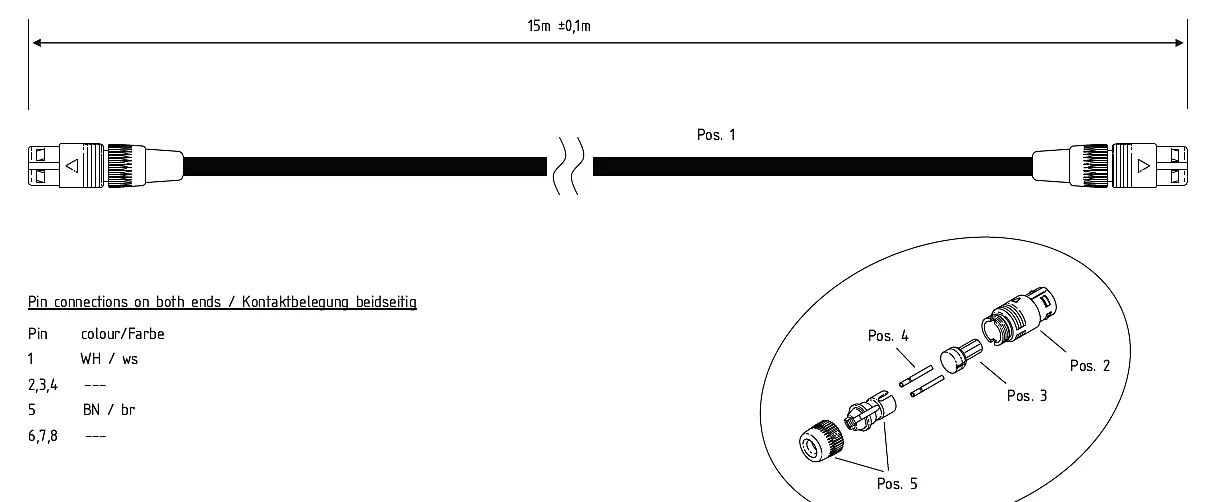

Power connection cable 15 m

Duo-battery charging station for Q.Lign | incl. accessories

Battery for Q.Lign | Li-Ion | 99 Wh

Power supply for Q.Lign Accessories | 19 V RRC

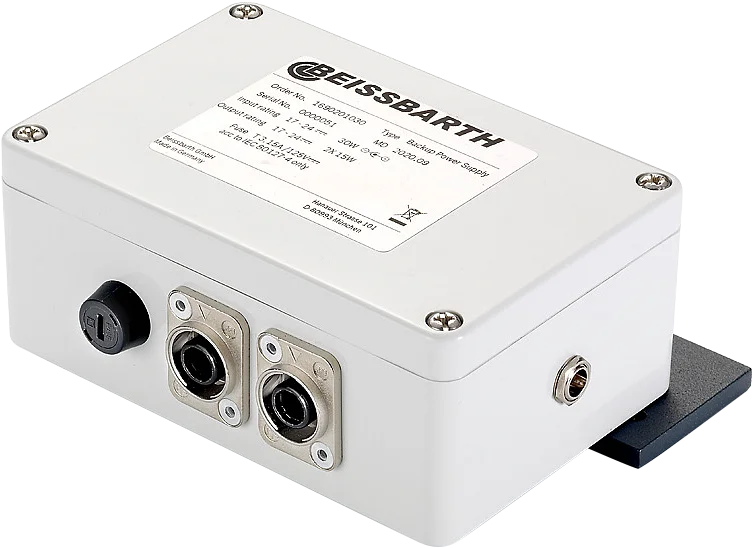

Emergency power box for Q.Lign

• Power supply of sensor heads in case of battery failure
• Mobile use without fixed installation
• Connection to sensor heads via 10 m (1690203025) or 15 m cable (1690203041)

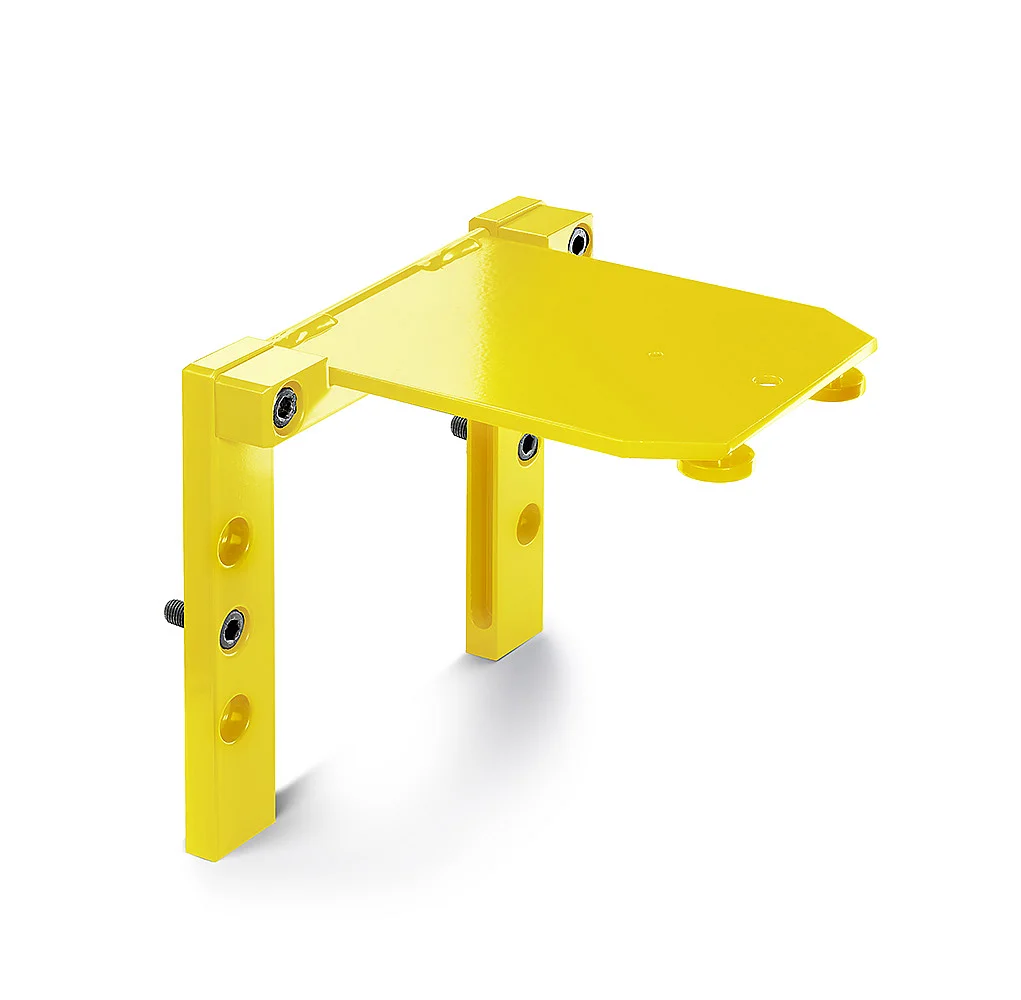

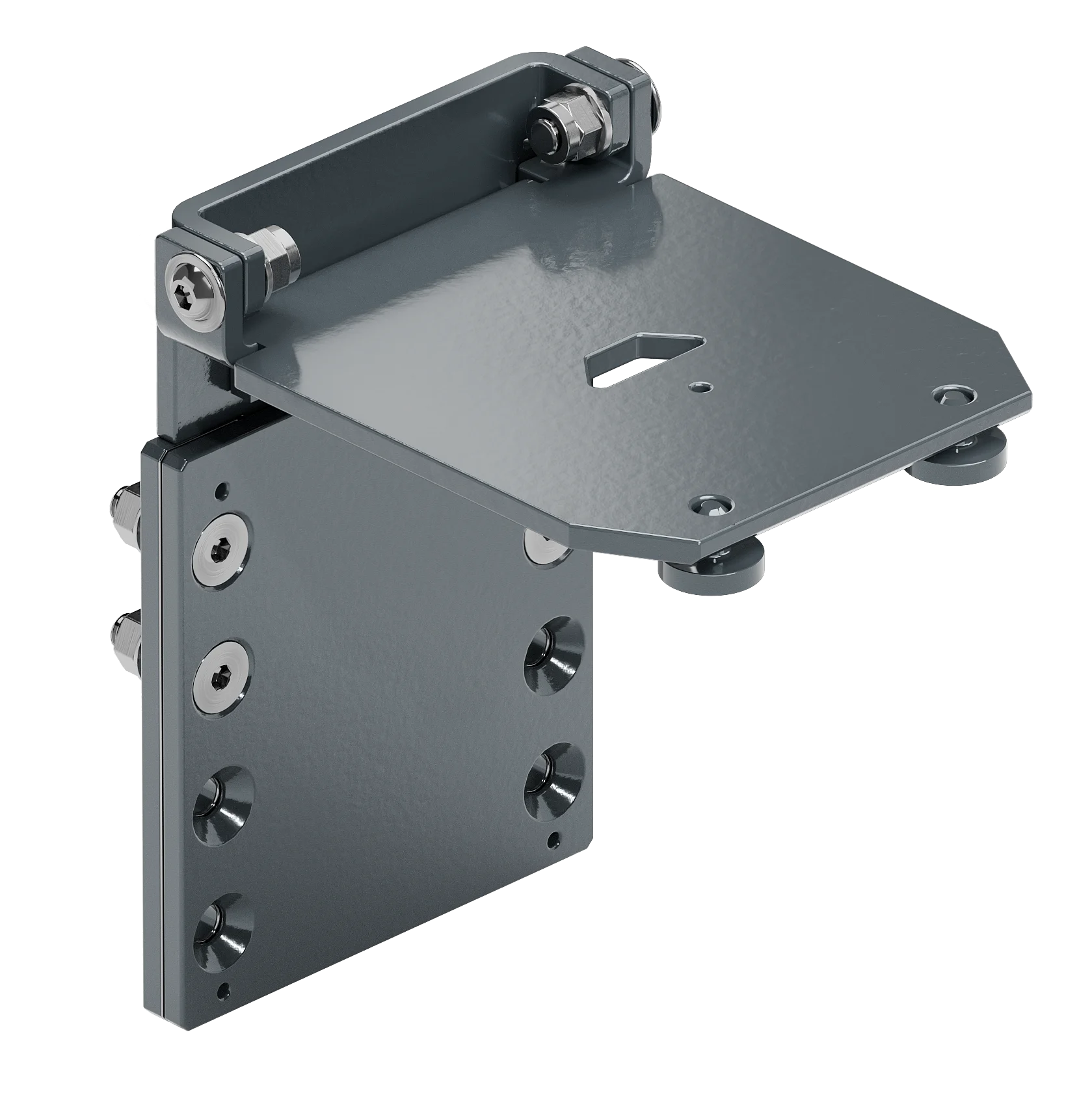

Lift adaptation for Q.Lign

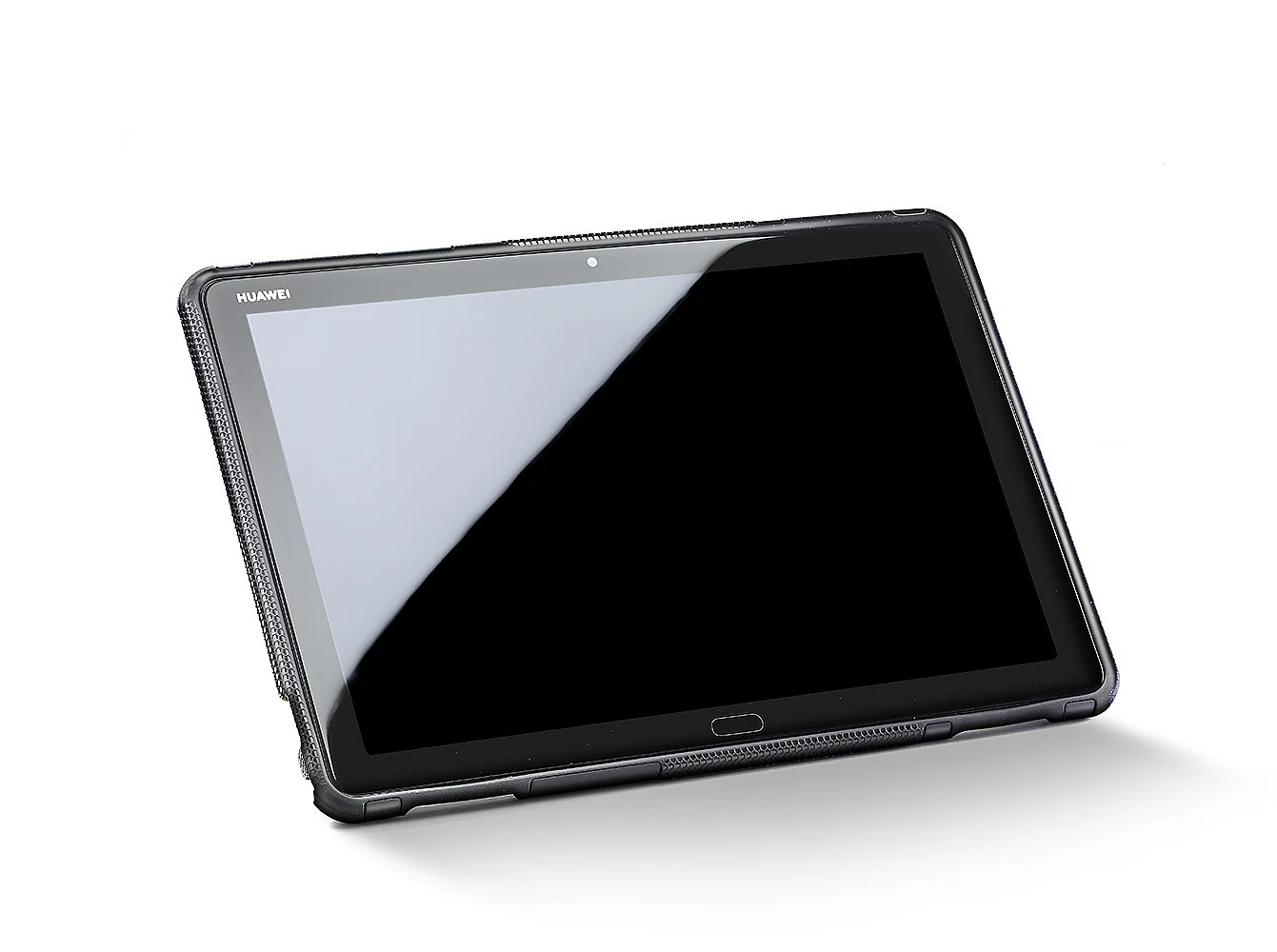

Tablet | Android | 10.1"

Mouse and keyboard | Wireless

Wall board for Q.Lign

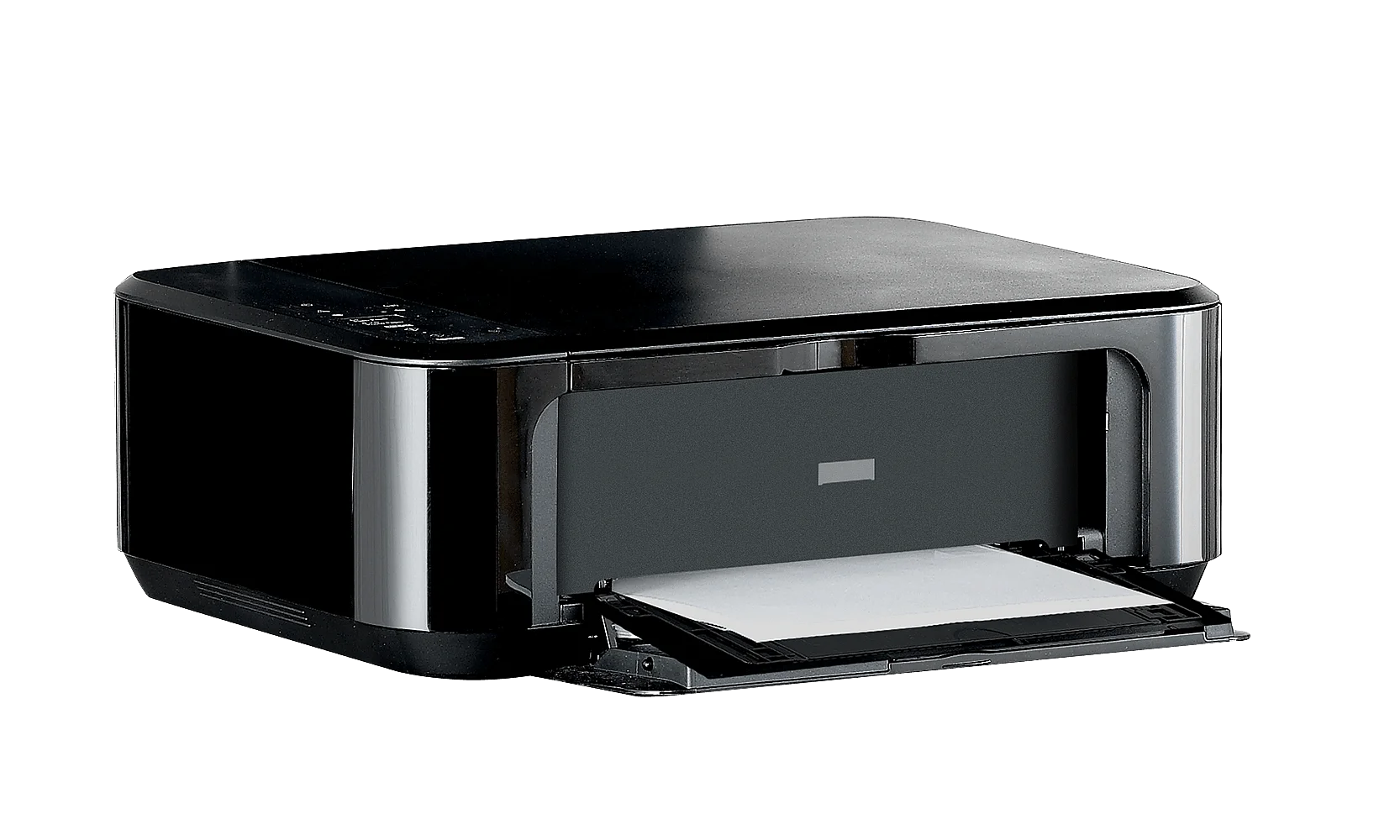

Printer for Beissbarth trolleys

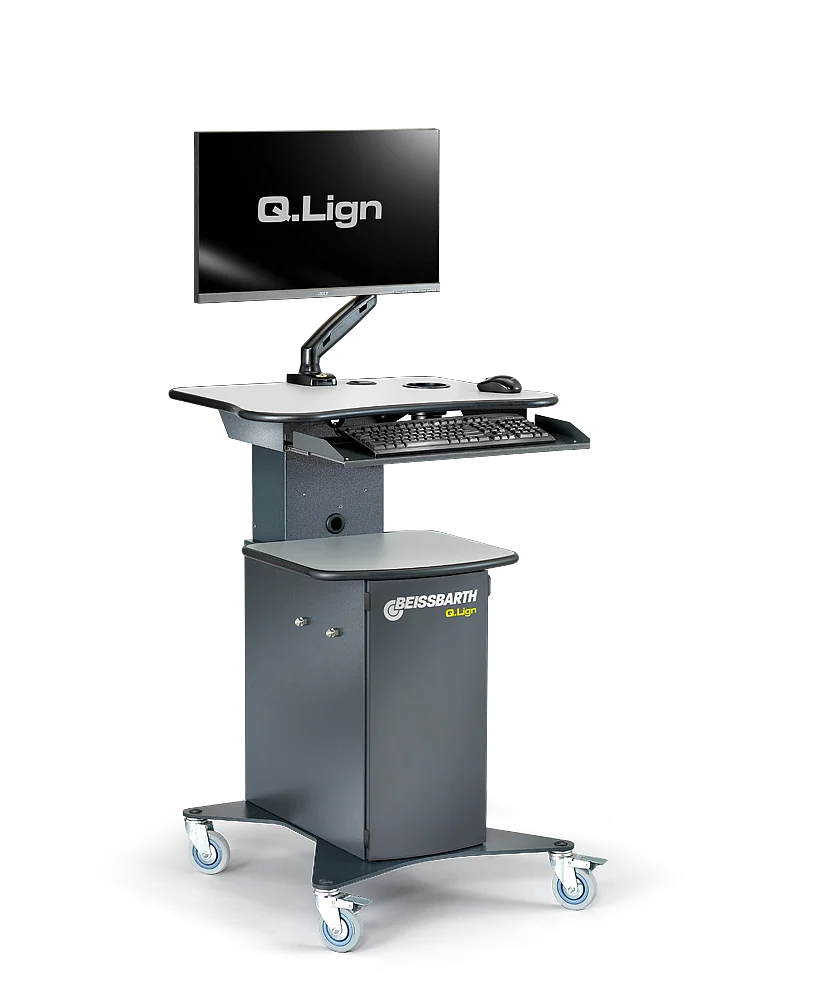

Trolley with 27"monitor | for Q.Lign

Scope of delivery:

• Trolley
• Monitor arm
• 27" monitor

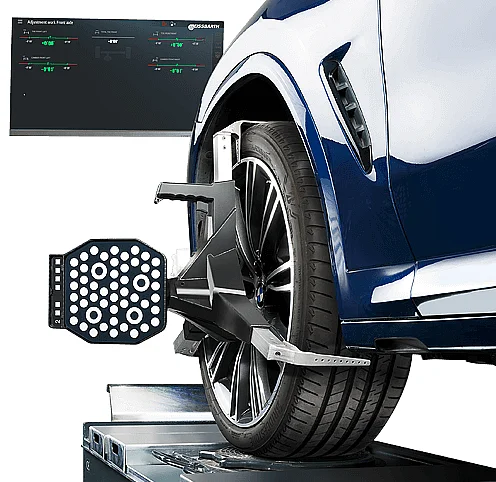

Adapter set Q.Grip | for Q.Lign | 4 pcs.

Q.Grip: The closest you will get to Touchless.

• Mounting of targets in under 5 seconds
• No rim contact, no scratches or damages!
• Instantaneously change between different tyre diameters with our new patented clamping mechanism
• Three arms guarantee safe and precise grip during the complete alignment
• No removal of hubcaps!
• No knob twisting!
• No fixed wheel assignment, position on any wheel!
• Clamping range: 525-835mm / 20.6"-32.8" (wheel diameter)

RaceScales | VAS 701009 | Precision turntable with load cells | 433Mhz

Electronic corner weight scales: Optimal adjustment of the chassis in connection with the wheel alignment

The electronic corner weight scales carry out high-precision weight distribution on the vehicle. In connection with the wheel alignment, the chassis can be optimally adjusted. This provides maximum levels of grip and better overall handling of the vehicle.

By the help of the corner weight scales the static weight distribution as well as the center of gravity optimization are integrated into to wheel alignment process. This not only ensures a stable and levelled working surface for optimal measurement results but also allows the immediate re-adjustment of camber, caster, and toe settings after the change in ride height. In motorsports the RaceScales ensure best race settings of the vehicle for faster lap times.

Digital corner balance scales:

• High precision for best measurement results
• High performance lithium polymer battery, wireless
• Seamless integration in all common wheel alignment lifts
• Compatible with all Beissbarth wheel aligners and third-party systems
• Intuitive software with clear display of measured values
• Always-on-top mini screen with live values of the four wheel weights

Software functions for optimal weight distribution:

• Weight distribution per wheel
• Weight distribution per axle
• Difference between front and rear
• Weight distribution per side
• Difference between left and right
• Cross Weight
• Cross Weight in %
• Total weight
• Live center of gravity
• Weighing protocol with company and customer information

Features wheel alignment turntables:

• With steering sensor for maximum steer measurement with CCD, Touchless, and Q.Lign wheel aligner
• Very high quality and durability
• Steel balls for reduced friction and higher accuracy
• Compatible with all common wheel alignment lifts
• Seamless integration in wheel alignment lifts without fixed rear sliding base

Scope of delivery:

• 2 turntables Precision with load cells and steering sensor (433 MHz)
• 2 turntables Precision with load cells without steering sensor (433 MHz)
• 4 turntable covers
• 4 charging cables (4 m)
• 2 USB power supply
• Radio receiver (433 MHz)
• Software and documentation (on USB flash drive)

Technical specs:

• Maximal load capacity per turntable: 1000 kg
• Frequency: 433 MHz (not suited for North America or Japan*)
• Battery runtime under full load: >24 h
• Measurement accuracy: <0,2% of final value (0 -1,000 kg measuring range)
• Resolution: 1 kg
• Required operating system for PC visualization: Windows 7 / 8.1 / 10

All corner weight scales are factory calibrated through ISO-certified measurement laboratory!

Listed as official Porsche accessory: VAS 701 009

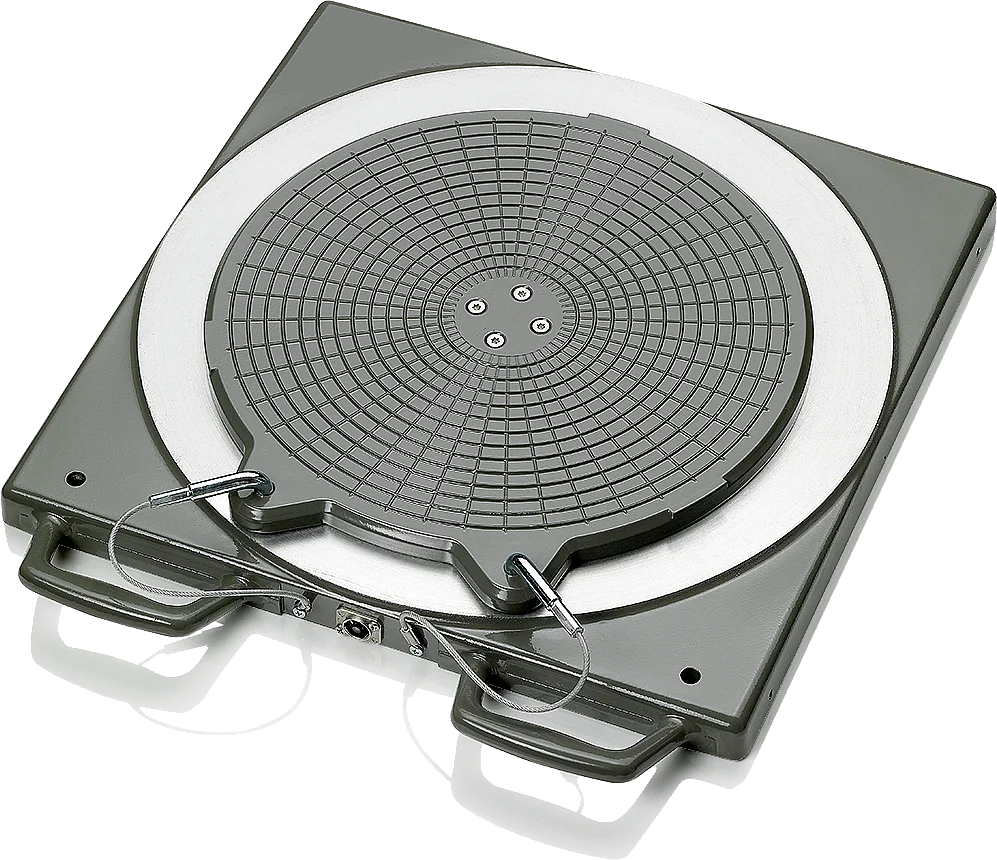

Electronic aluminum turntable without connecting cable | Standard

• Enables full steering lock on CCD and Touchless aligner
• Very high quality and lifetime in workshop environment
• Standard turntable without connecting cable

Scope of delivery:

• 1 x Electronic standard turntable

Electronic aluminum turntable without connecting cable | Precision

• Enables full steering lock on CCD and Touchless aligner
• Very high quality and lifetime in workshop environment
• Precision turntable without connecting cable
• Steel balls for minimal friction and maximum precision

Scope of delivery:

• 1 x Electronic precision turntable

Protective rubber cover for aluminum turntable

• Additional protection from dirt and liquids

Scope of delivery:

• 1 x Protective cover

Connecting cable for electronic turntables

• Connecting cable between electronic turntables and sensor head
• Enables full steering lock on CCD and Touchless aligner

Scope of delivery:

• 1 x Connecting cable

Drive-on ramps for two aluminum turntables

• Drive-on ramps for turntables including connecting piece and drive off protection
• Enables rolling compensation on lifts without embedded turntables

Scope of delivery:

• Set with 2 x drive-on ramps

Drive-on ramps for turntables and sliding plates

• Set of Drive-on ramps for turntables and sliding plates
• Suitable for lifts without cutouts for turntables or sliding plates, e.g. MOT lifts

Scope of delivery:

• Set with 2 x drive-on ramps

Filling piece for aluminum turntable

Scope of delivery:

• 1 x Filling piece

Filling piece for aluminum precision turntable

Magnetic clamps for wheel bolts | 75mm

• Quick and gentle attachment on wheel bolts instead of the rim
• Secure and central hold for ultimate precision
• Suited for 3/4/5/6 hole rims

Scope of delivery:

• 4 x Magnet clamps 75mm

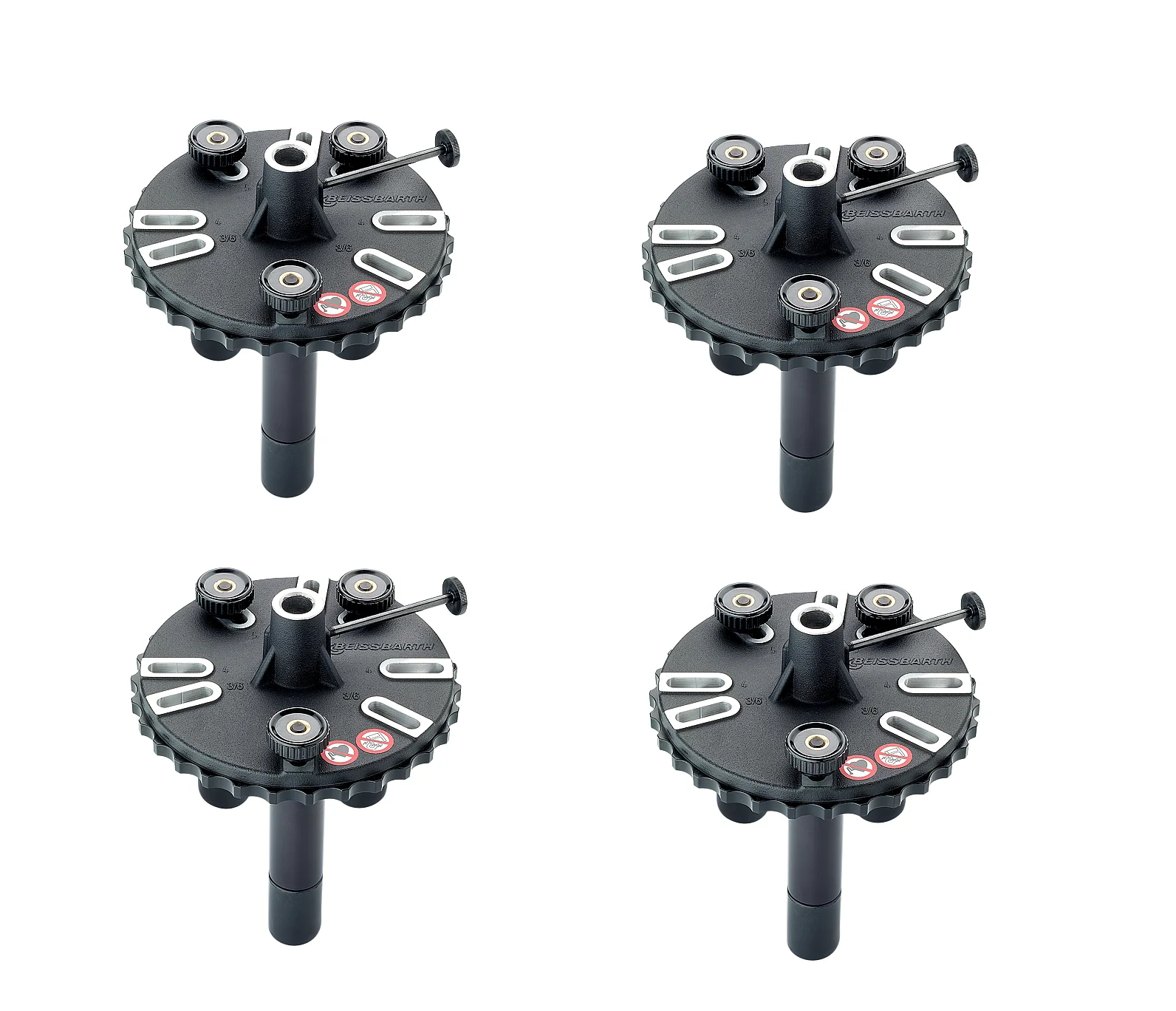

Magnetic clamps for wheel bolts | 100mm

• Quick and gentle attachment on wheel bolts instead of the rim
• Secure and central hold for ultimate precision
• Suited for 3/4/5/6 hole rims

Scope of delivery:

• 4 x Magnet clamps 100mm

Self-centering quick clamp for Porsche

• Attaches to the center hole of the rim
• Quick and secure mounting on the vehicle
• Reduces clamping errors
• Official VW special tool: VAS 6918
• Not suited for Porsche vehicles with center wheel bolt!

Scope of delivery:

• 4 x Quick clamp VAS 6918/1
• 4 x Clamping ring 76.7 mm VAS 6918/2
• 4 x Clamping ring 64.4 mm VAS 6918/3
• 1 x Socket wrench VAS 6918/4
• 4 x Replacement O-rings
• Suitcase for secure transport and storage

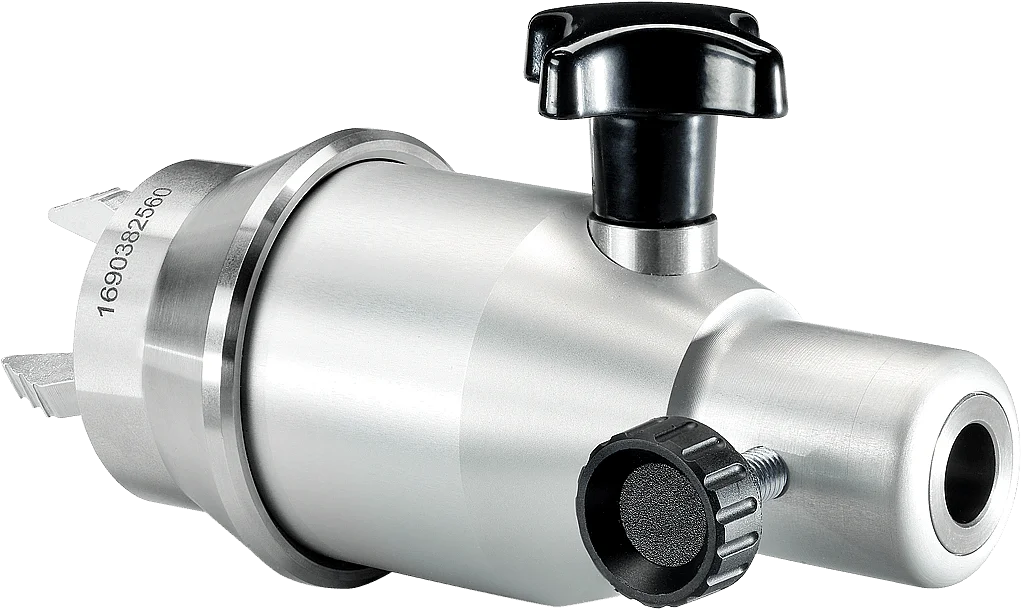

Self-centering quick clamp for Tesla

• Attaches to the center hole of the rim
• Quick and secure mounting on the vehicle
• Reduces clamping errors

Scope of delivery:

• 4 x Quick clamp
• 4 x Clamping ring
• 1 x Suction cup
• Suitcase for secure transport and storage

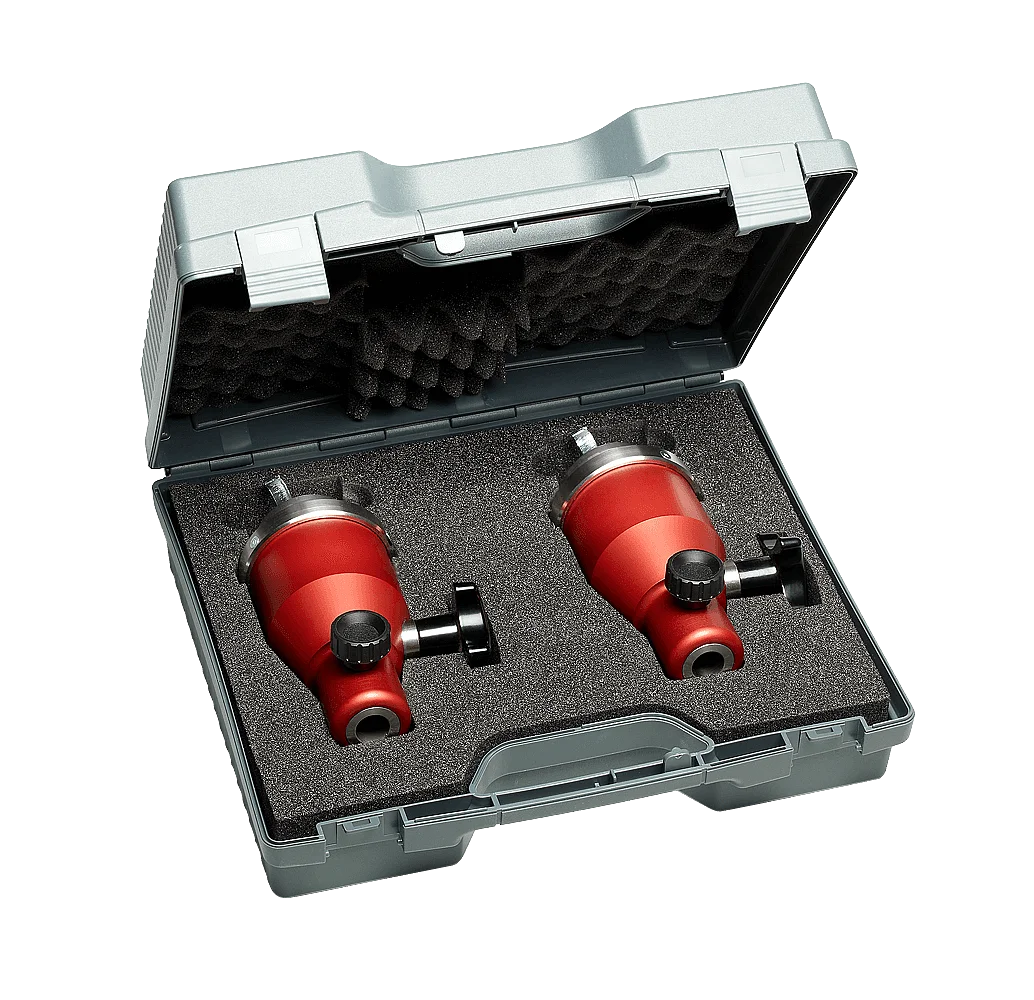

Self-centering quick clamp for Ferrari

• Attaches to the center hole of the rim
• Quick and secure mounting on the vehicle
• Reduces clamping errors
• Used for wheel alignment and radar calibration - Wheel alignment requires 2 sets (4 clamps in total) - Radar calibration requires 1 set (2 clamps in total)

Scope of delivery:

• 2 x Quick clamp
• 2 x Clamping ring
• 1 x Suitcase for secure transport and storage

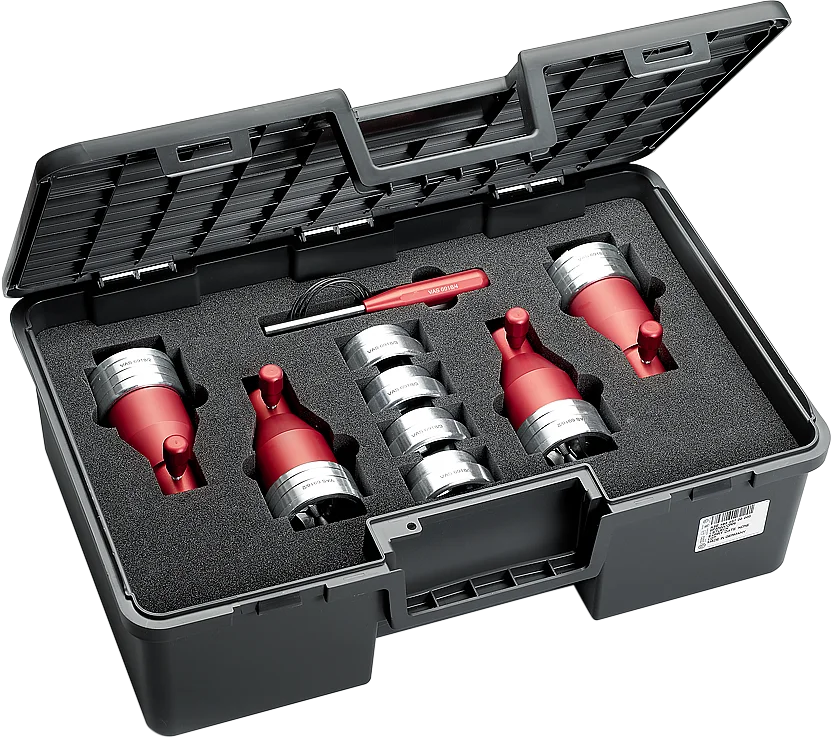

Central clamp Porsche Carrera GT

• Quick and secure mounting on the vehicle
• Reduces clamping errors
• Official VW special tool: VAG 6828

Scope of delivery:

• 2 x Red central clamp with left-handed thread
• 2 x Blue central clamp with right-handed thread
• 4 x Spoiler adapter with spirit level
• Suitcase for secure transport and storage

Central clamp Porsche 911 GT3 and Turbo

• Special tool for Porsche 911 Turbo since 2009 and Porsche 911 GT3 since 2010
• Quick and secure mounting on the vehicle
• Reduces clamping errors
• Official VW special tool: VAG 6830

Scope of delivery:

• 4 x Central clamp
• 4 x Distance rings for Porsche 911 Turbo with center wheel bolt
• Suitcase for secure transport and storage

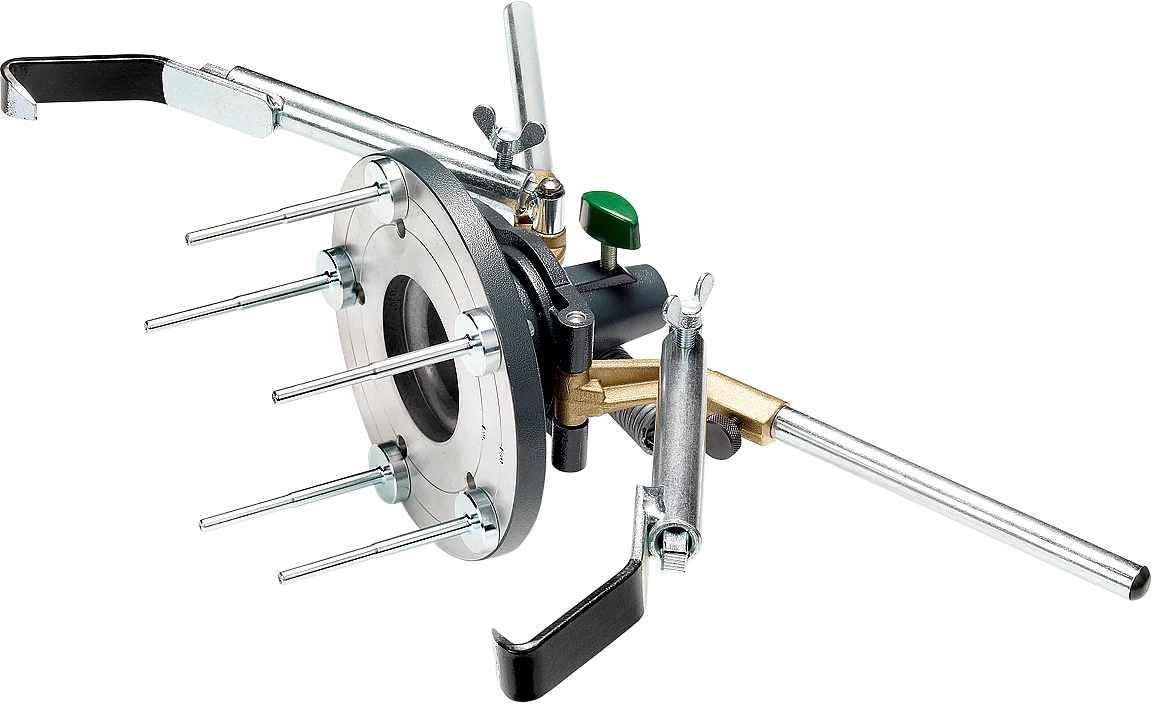

Quick clamp Mercedes-Benz | OEM

• Distance bolts sit directly on the brake disc, a runout compensation is therefore not necessary
• Quick and secure mounting on the vehicles
• For ultimate precision
• Homologated for Mercedes-Benz
• Only suited for CCD and Q.Lign systems
• For wheel diameters up to 850mm
• For original Mercedes-Benz rims with poly control drillings 5x125mm and 5x160mm

Scope of delivery:

• 1 x Quick clamp Mercedes-Benz
• 5 x Distance bolts 100 mm

Quick clamp BMW | OEM

• Distance bolts sit directly on the brake disc, a runout compensation is therefore not necessary
• Quick and secure mounting on the vehicles
• For ultimate precision
• Homologated for BMW
• Only suited for CCD and Q.Lign systems
• Für Raddurchmesser bis 850mm
• For original BMW rims with 4x100mm and 5x120mm polycontrol drillings

Scope of delivery:

• 1 x Quick clamp BMW
• 5 x Distance bolts 120mm

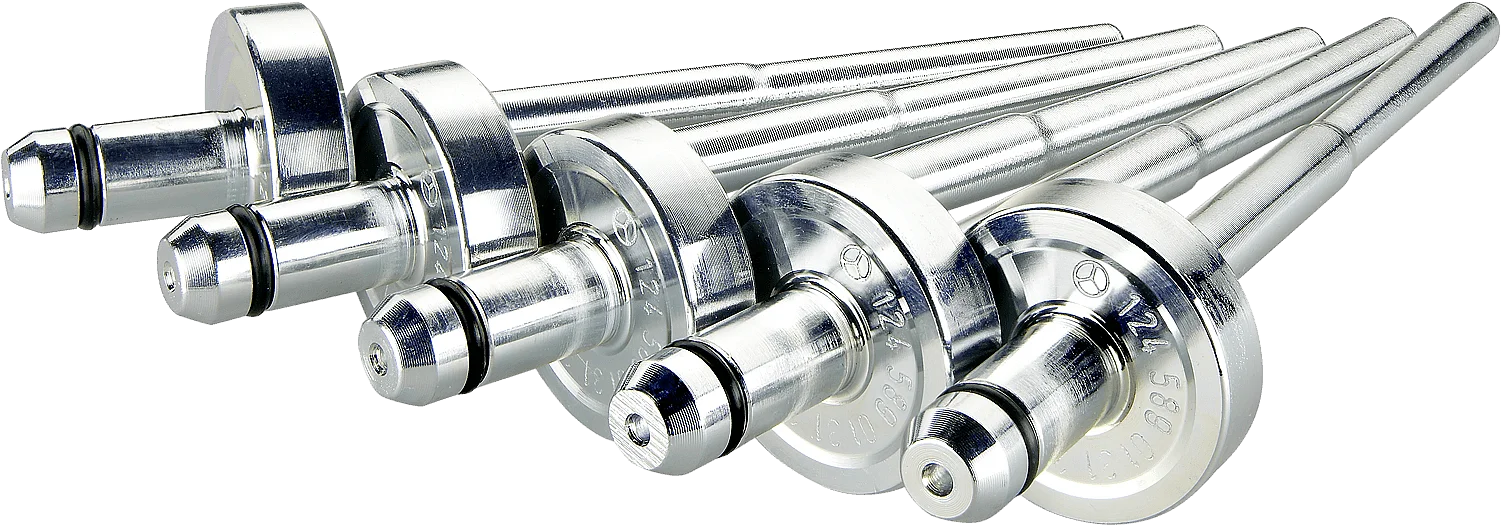

Distance bolts for quick clamp Mercedes Benz | 100 mm

• For one quick clamp

Scope of delivery:

• 5 x Pins 100 mm

Distance bolts for quick clamp BMW | 120 mm

• For one quick clamp

Scope of delivery:

• 5 x Pins 120 mm

Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm

• For one quick clamp

Scope of delivery:

• 5 x Pins 125 mm

Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs.

• High quality claws for gentle attachment to rims
• Torque control for strong hold without deforming the rim

Scope of delivery:

• 4 x Multi-fit clamps
• 16 x Standard claws

Multi-Fit wheel clamp with standard claws | 13 - 22" | 1pc.

• High quality claws for gentle attachment to rims
• Torque control for strong hold without deforming the rim

Scope of delivery:

• 1 x Multi-fit clamp
• 4 x Standard claws

Set softline claws for 1 x Multi-fit clamp | Softline rims

Scope of delivery:

• 4 x Special claws for softline rims

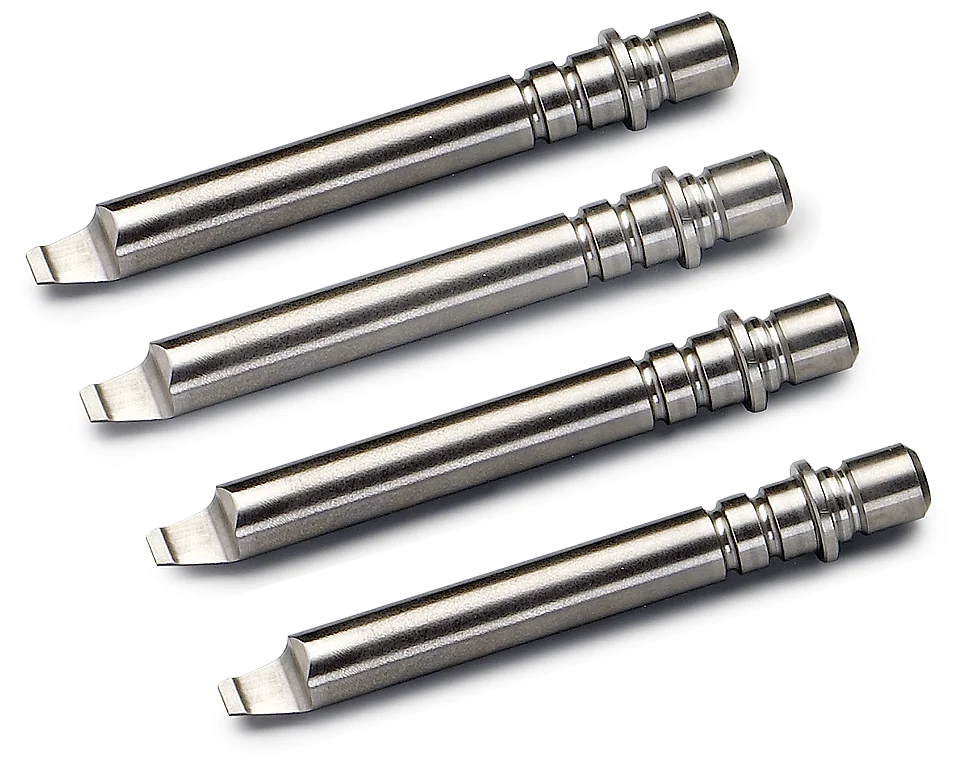

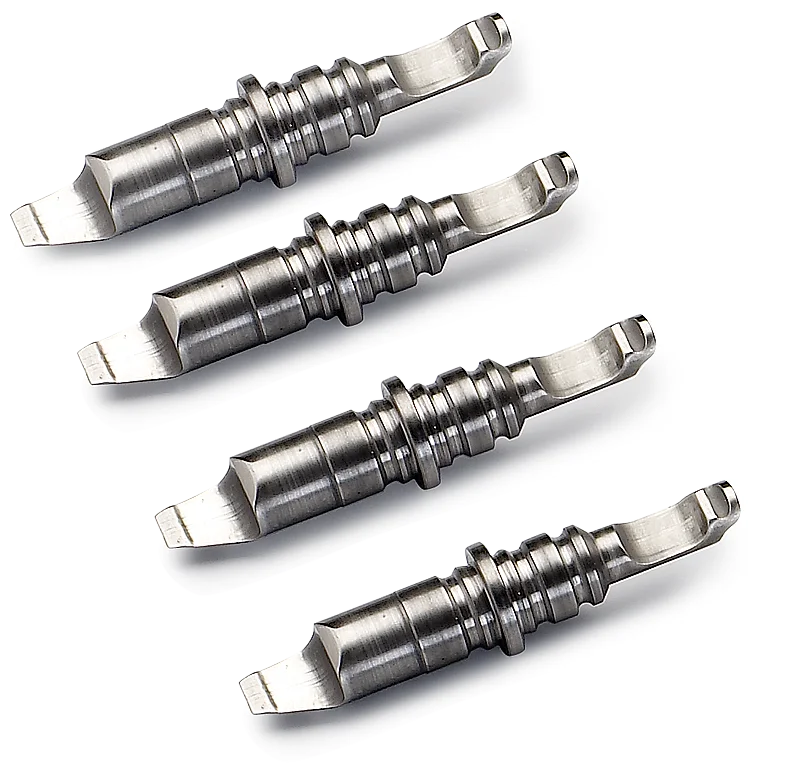

Set truck claws for 1 x Multi-fit clamp | Truck

For convex wheels mounted to a double-bearing hub and dually wheels.

Length: 10cm

Scope of delivery:

• 4 x Truck claws for 1 Multi-Fit Clamp

Extension set for Multi-fit clamps | 23 - 28"

Scope of delivery:

• 4 x Extensions

Wheel chock set 2 pcs.

Scope of delivery:

• 2 x Wheel chock

Ballast bag 5 kg

Scope of delivery:

• 1 x Ballast bag, 5 kg

Ballast bag 8 kg

Scope of delivery:

• 1 x Ballast bag, 8 kg

Ballast bag 10 kg

Scope of delivery:

• 1 x Ballast bag, 10 kg

Ballast bag 20 kg

Scope of delivery:

• 1 x Ballast bag, 20 kg

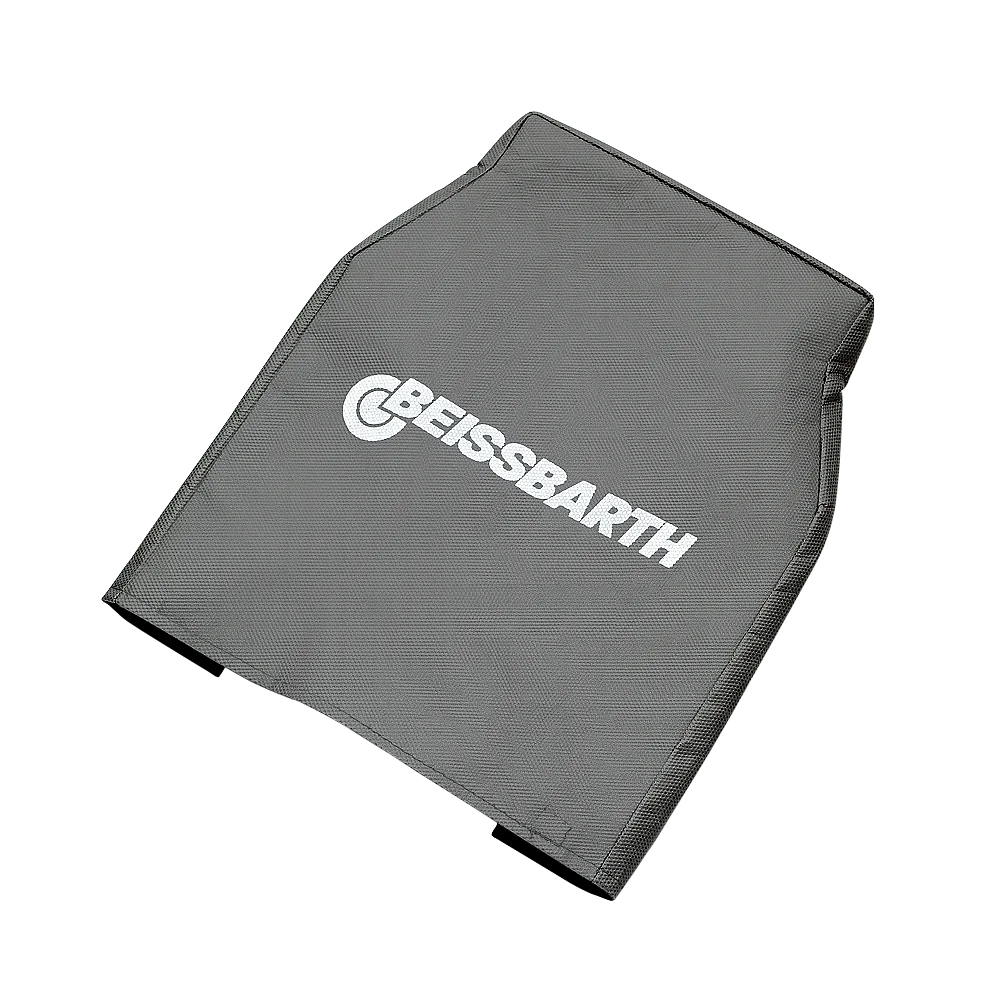

Dust cover target board | Q.Lign

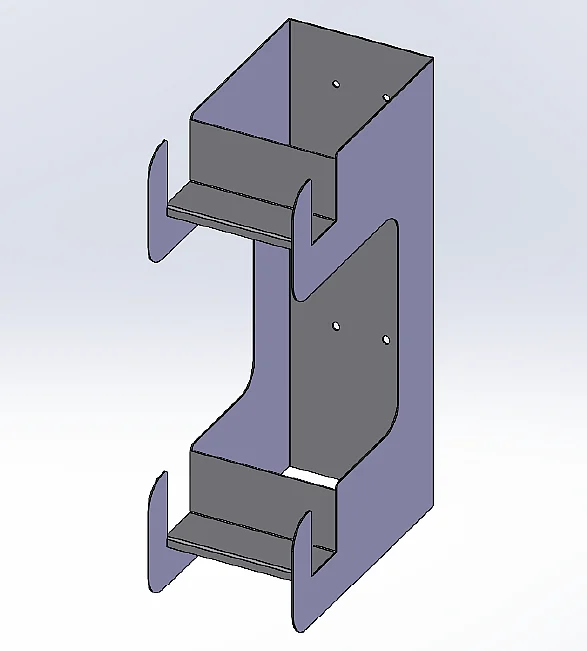

Storage kit | for 4x Q.Grip
