Wheel aligner VAS 6767A | for VOLKSWAGEN
The new wheel alignment bay - Complete, efficient, professional | Cable version | with cabinet, HighPerformance PC, 27" monitor and printer | incl. lift adapter, 2 cable sets, turntable Precision and OEM magnetic clamps
Article number: 1 690 700 013
High measuring accuracy and precision for top results
- The combination of the Beissbarth stereo camera measurement system with active reference system and sophisticated software ensures the accurate determination of measured values: Toe and camber accurate to +/- 2 angular minutes.

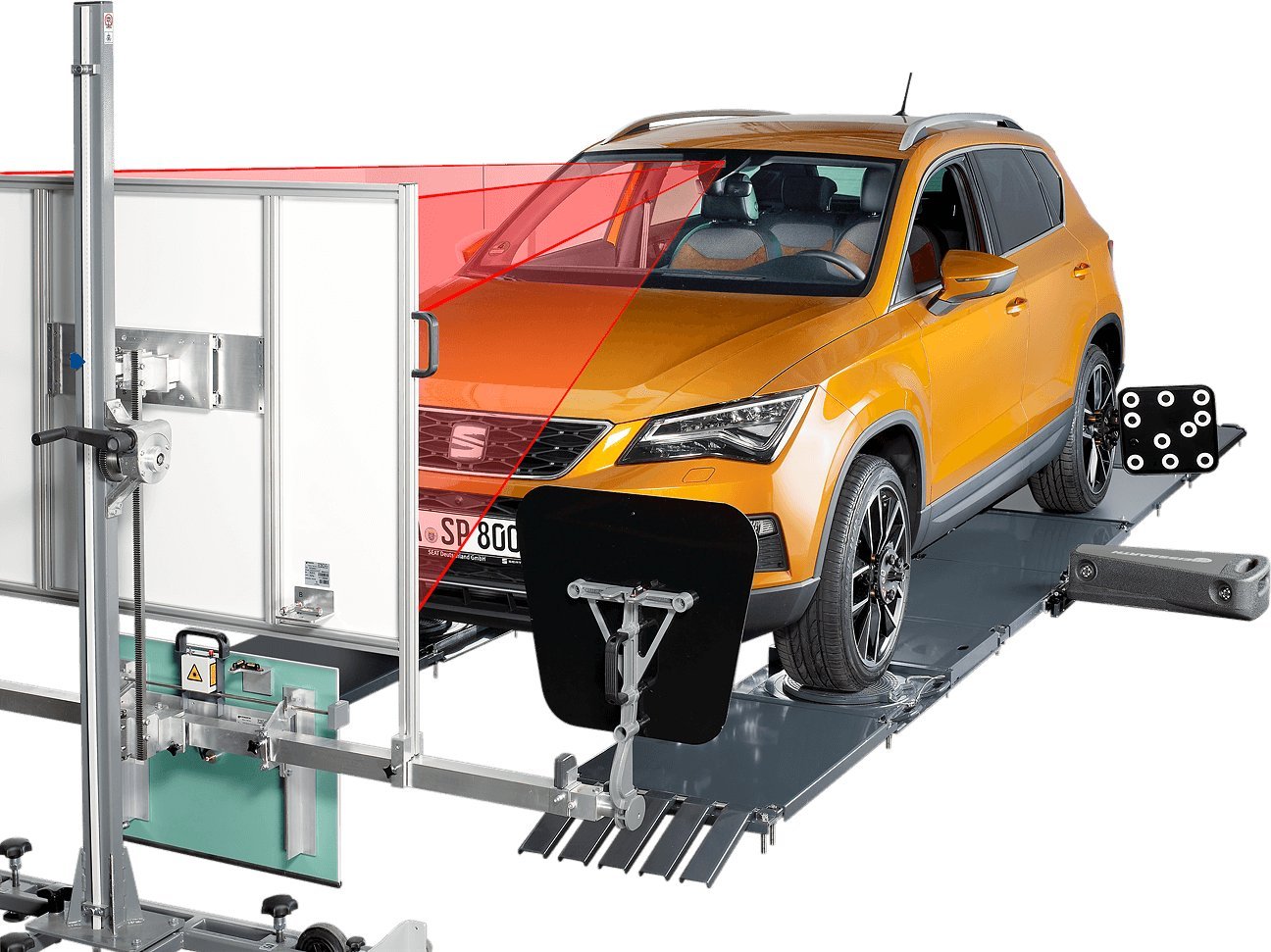

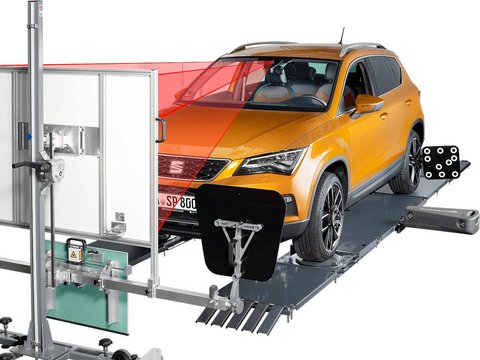

Perfectly integrated into ADAS calibration and head light testing:
- The space in front of the lift can be used for the ADAS calibration jig and head light tester
- Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
- No need for extra cameras, cables, clamps or targets required for ADAS calibration
Highly repeatable initial measurement
- Quick and easy live ride height measurement (optional) with markers attached by adhesive pads
- Rolling or driving run-out compensation at ground level
- No loading of vehicle required
- Three selectable measurement routines: program-driven, quick measurement, choice-free access to single-value check
Sophisticated software for maximum measurement and adjustment efficiency
- Real-time display of measured values combined with vehicle specs
- Visually animated adjustment instructions for third-party vehicles
- Several languages as standard for staff from all over the world
- ASA network ready
- Sensor heads can be easily detached from the lift when not in use to clear up space
- Beissbarth DualView camera system for ultimate control, especially of complex chassis
- No fixed position for targets on the vehicle eliminates room for error
- Plug & play: no calibration required for installation or for exchanging targets
- Extensive Beissbarth vehicle database including alignment helps directly from the OEMs
- Quality Made in Germany
- Cable version

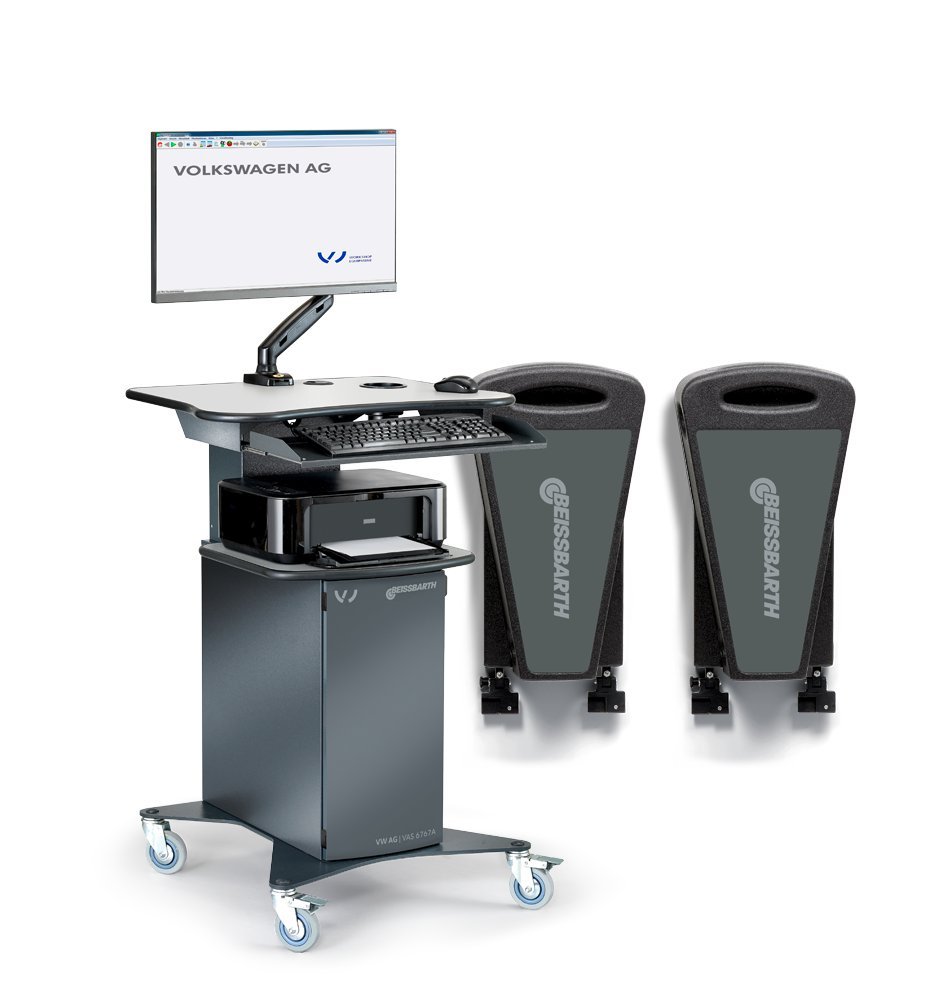

Scope of delivery:
- Sensor head with DualView camera technology
- Target boards
- ADAS calibration boards
- Vehicle specs database with additional VW Professional data
- Cabinet
- HighPerformance PC
- 27" Monitor
- Printer
- OEM magnetic clamps with long magnets
- Wall storage kit for clamps and targets
- Lift adapter
- Precision Turntable
- Remote control
- Brake pedal depressor and steering wheel holder
- Cable set 12 m/15 m for installation on the lift
| Operating temperature | 5 - 40 °C |
|---|---|
| Electrical connection | 120 - 220 V | 50 - 60 Hz |
| Data transmission type | - corded |
| Measuring system | - 3D |
| Power | 0,5 kW |
| Storage temperature | -20 - 60 °C |
| Relative humidity, use | (40 °C) 10 - 90 % |
| Height cabinet | 1520 mm |
| Width cabinet | 880 mm |
| Depth cabinet | 770 mm |
| Weight cabinet | 100 kg |
| Height sensor head | 130 mm |
| Width sensor head | 320 mm |
| Depth sensor head | 630 mm |
| Weight sensor head | 9,3 kg |
| Vehicle database update Cars & Vans Europe | Key Card | 1 690 002 015 |
|---|---|
| Ride height markers VW | for VAS 6767 | 1 690 701 145 |
| Mechanical aluminum turntable Standard | 1 690 501 001 |
| Mechanical aluminum turntable Precision | 1 690 401 028 |
| Filling piece for aluminum turntable | 1 690 702 082 |
| Protective rubber cover for aluminum turntable | 1 690 402 001 |
| Sliding plate for rear axle | short | 1 690 401 003 |
| Sliding plate for rear axle | long | 1 690 401 004 |
| Drive-on ramps for two aluminum turntables | 1 690 701 052 |
| Drive-on ramps for turntables and sliding plates | 1 690 401 008 |
| Lift adapter extension from one to two positions | 1 690 701 503 |
| Special lift adapter for Beissbarth / Consul | 1 690 701 123 |
| Special lift adapter Extension for Beissbarth / Consul | 1 690 701 311 |
| Special lift adapter for lifts with U-profile | 1 690 701 020 |
| Floor adapter for LTB 100/300 | 1 690 701 506 |
| Floor adapter for alignment pits | 1 690 701 027 |
| Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs. | 1 690 311 112 |
| Multi-Fit wheel clamp with standard claws | 13 - 22" | 1pc. | 1 690 311 089 |
| Extension set for Multi-fit clamps | 23 - 28" | 1 690 311 113 |
| Set softline claws for 1 x Multi-fit clamp | Softline rims | 1 690 311 164 |
| Set truck claws for 1 x Multi-fit clamp | Truck | 1 690 311 115 |
| Central clamp Porsche Carrera GT | 1 690 301 002 |
| Central clamp Porsche 911 GT3 and Turbo | 1 690 380 002 |
| Self-centering quick clamp for Porsche | 1 690 301 003 |
| Self-centering quick clamp for Porsche | 1 690 380 010 |
| Self-centering quick clamp | for Lamborghini | 8 900 380 016 |
| Self-centering quick clamp for Tesla | 1 690 380 161 |
| Self-centering quick clamp for Ferrari | 1 690 381 299 |
| Target boards 340 cm | 1 690 701 032 |
| Extension for vehicles with narrow track width (Smart) | 1 690 701 127 |
| Standard target board for Easy 3D | 1 690 711 005 |
| Special target boards for DAS calibration jig in combination with 4-post lifts | 1 690 701 152 |
| Standard target boards for DAS calibration jig | 1 690 701 119 |
| Cable set 7.5 m / 7.5 m | 1 690 701 205 |
| Cable set 12 m / 12 m | 1 690 701 029 |
| Cable set 15 m / 15 m | 1 690 701 030 |
| Cable set 25 m / 25 m | 1 690 701 163 |
| Brake pedal depressor | 1 690 401 006 |
| Steering wheel holder | 1 690 401 007 |
| Step protection for Easy 3D | 1 690 701 045 |
