Wheel aligner V.A.G 1813A | for VOLKSWAGEN

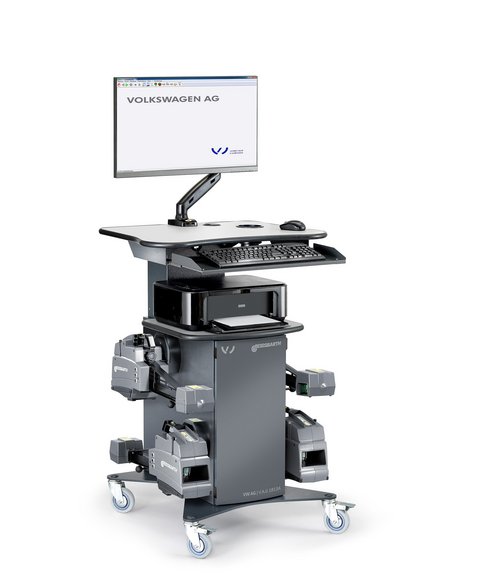

For professional measurement according to Volkswagen provisions | with CCD-Technology and wireless data transfer | with cabinet, HighPerformance PC, 27" monitor and printer | incl. emergency cable set for for sensor heads, turntable Precision and quick clamps

Article number: 1 690 570 015

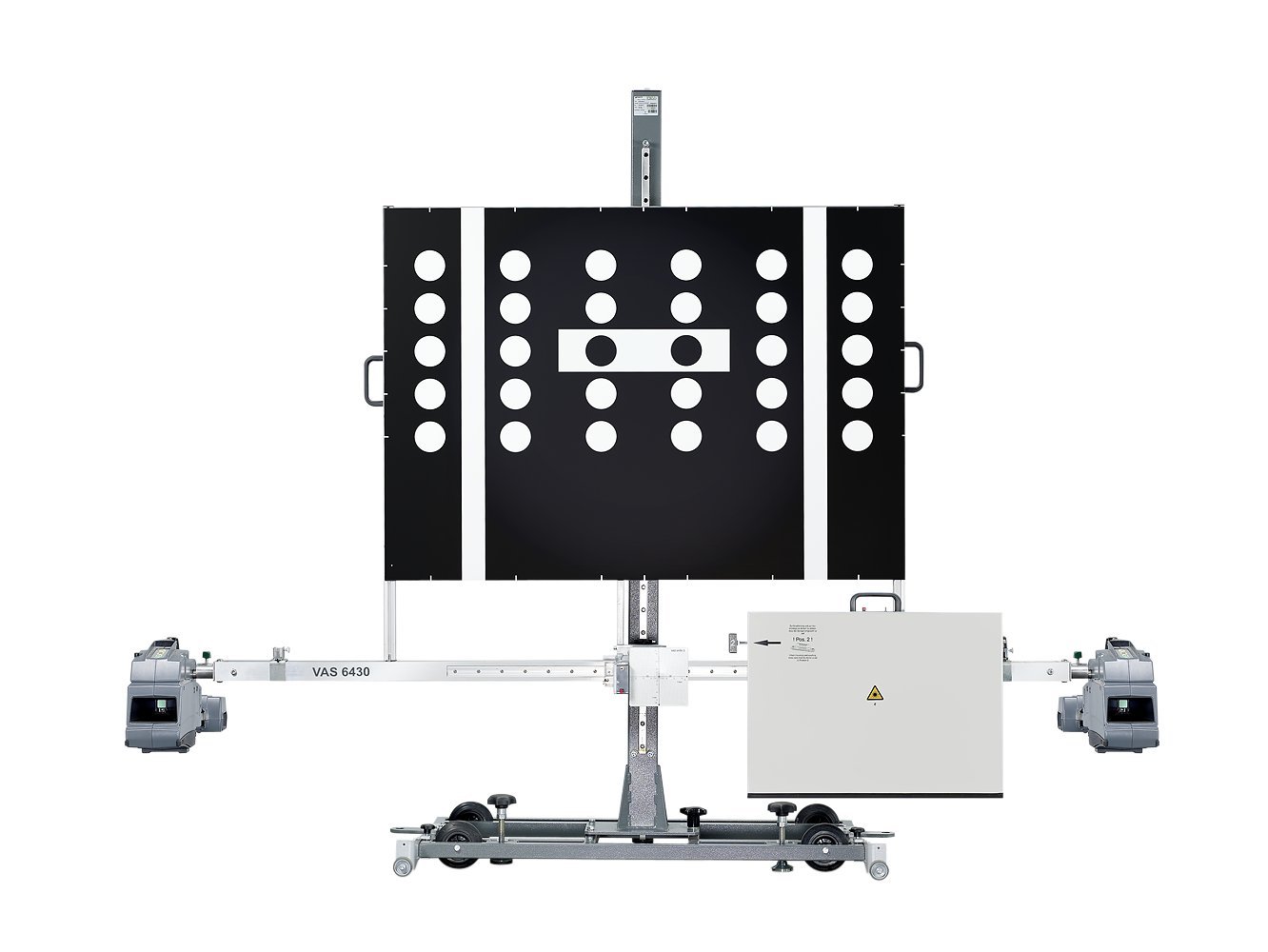

Perfectly integrated into ADAS calibration and head light testing:

  • The space in front of the lift can be used for ADAS calibration boards and head light tester
  • Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
  • No need for extra cameras, cables, or clamps required for ADAS calibration

Best in class: +/- 2 minute accuracy

  • 360° measurement field for permanent self-check and adjustment of system to movement and vibrations
  • No calibration to a specific lift allows a measurement on any wheel alignment bay
  • Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or laptops
  • Intelligent and space-saving charging solution that can be mounted on any wall
  • Quality made in Germany

Sophisticated software for maximum measurement and adjustment efficiency

  • Real-time display of measured values combined with vehicle specs
  • Visually animated adjustment instructions for third-party vehicles
  • Several languages as standard for staff from all over the world
  • Toe indicator in full-lock state as well as track- and camber display in raised state for comfortable toe rod adjustment
  • ASA network ready
  • Data transmission: 433 Mhz

Scope of delivery:

  • Sensor head with encoder and battery power (433 Mhz frequency)
  • Software with quick check for direct reception and ADAS calibration option
  • Vehicle specs database with additional VW Professional data
  • Cabinet with HighPerformance PC
  • 27" monitor
  • Printer
  • 3-point quick clamps 13"-23"
  • Precision turntables with electronics for maximum steer
  • Remote control
  • Brake pedal depressor and steering wheel holder
  • Emergency cable set for sensor heads
  • Calibration tool
Operating temperature5 - 40 °C
Electrical connection120 - 220 V | 50 - 60 Hz
Data transmission type- cordless
Measuring system- CCD
Power0,5 kW
Frequency433 MHz
Storage temperature-20 - 60 °C
Relative humidity, use(40 °C) 10 - 90 %
Height cabinet1520 mm
Width cabinet880 mm
Depth cabinet770 mm
Weight cabinet110 kg
Vehicle database update Cars & Vans Europe | Key Card1 690 002 015
Mechanical aluminum turntable Standard1 690 501 001
Mechanical aluminum turntable Precision1 690 401 028
Electronic aluminum turntable without connecting cable | Standard1 690 401 011
Electronic aluminum turntable without connecting cable | Precision1 690 401 013
Connecting cable for electronic turntables1 690 403 001
Filling piece for aluminum turntable1 690 702 082
Protective rubber cover for aluminum turntable1 690 402 001
Sliding plate for rear axle | short1 690 401 003
Sliding plate for rear axle | long1 690 401 004
Drive-on ramps for two aluminum turntables1 690 701 052
Drive-on ramps for turntables and sliding plates1 690 401 008
ProClamp wheel clamp | 13 - 23" | 1 pc1 690 100 001
Distance bolt 70mm (1x) | for ProClamp 16901000011 690 102 200
Central clamp Porsche Carrera GT1 690 301 002
Central clamp Porsche 911 GT3 and Turbo1 690 380 002
Self-centering quick clamp for Porsche1 690 301 003
Self-centering quick clamp for Porsche1 690 380 010
Self-centering quick clamp for Tesla1 690 380 161
Self-centering quick clamp for Ferrari1 690 381 299
Precision spoiler adapter Porsche1 690 301 004
Spoiler adapter 50 mm1 690 401 005
Spoiler adapter 100 mm1 690 121 001
Wallboard for sensor heads1 690 311 146
Cable set 1 690 401 012
Brake pedal depressor 1 690 401 006
Steering wheel holder 1 690 401 007
Toe press bar for Mercedes Benz1 693 600 001
