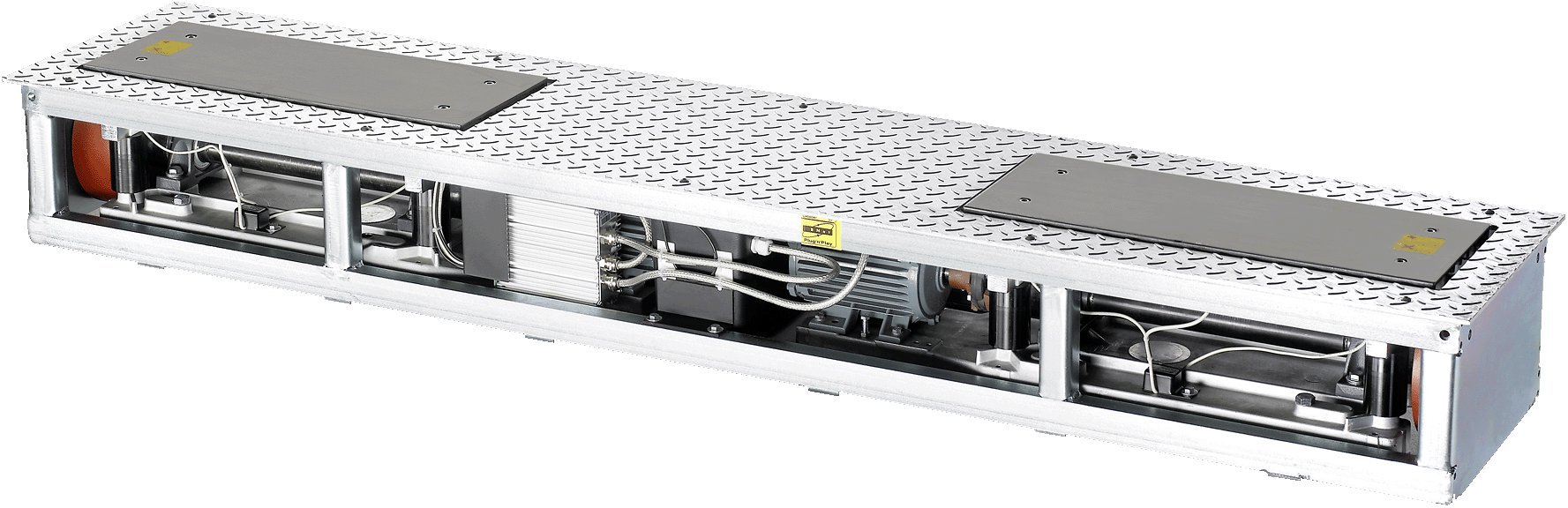

Suspension tester SA 640 | 400 V | EUSAMA
Special accessory for series BD 4xxx brake tester | only to be used for checking the technical condition of suspension elements
Article number: 1 691 620 307
- Under unfavorable conditions, the road surface adhesion of a wheel is governed by the technical condition of the suspension elements (suspension system, wheel bearings, tires and shock absorbers).
- The SA 640 measures the relative road surface adhesion of a wheel on the basis of the internationally recognized EUSAMA principle.
- The results of the full chassis test provide an overall assessment of the road safety of the vehicle.
- Measurement system: Bending bar with strain gauge
Scope of delivery:
- Suspension tester SA 640
- RR Connecting cable
- RR Set of clamping fixtures and fastening materials
| Weight | 313 kg |
|---|---|
| Packing | 2420 x 820 x 700 mm |
| Fuse protection | 3 x 20 A |
| Protection class | IP 54 |
| Length | 440 mm |
| Height | 280 mm |
| Operating temperature | -10 - 50 °C |
| Electrical connection | 400 V | 50 - 60 Hz |
| Measuring system | DMS |
| Max. sound pressure level | 70 dB(A) |
| Width | 2360 mm |
| Max. axle load testable | 2000 kg |
| Test width min. - max. | 820 - 2200 mm |
| Test frequency | < 25 Hz |
| Motor power | 2 x 2,5 kW |
| Engine speed | 1360 rpm |
| Storage temperature | -10 - 50 °C |
| Supply lead | 5 x 2,5 mm² |
| Fuse rating of power supply | 6,6 A |
| Test principle | - Excitation method (principle of EUSAMA) |
| Test plate length | 690 mm |
| Test plate width | 273 mm |
| Power factor (cos φ) | 0,75 |
| Measuring range, max. stroke | 6 mm |
| Gross weight | 343 kg |
| Phases | 3 |
| Relative humidity max. | 85 % |
| Max. drive-over load | 4000 kg |

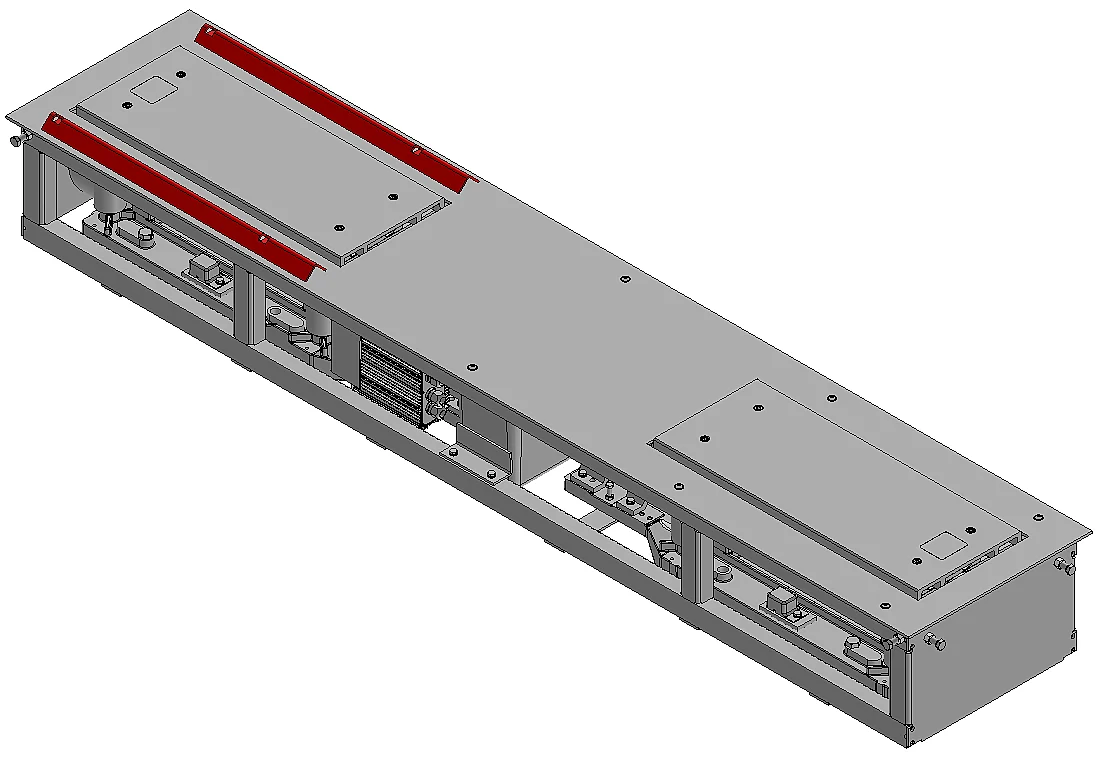

| Edge protection for suspension Tester SA 640 / SN 680 | 1 691 622 002 |
|---|---|
| Drive over ramp to replace suspension tester SA / SN 6xx | 1 691 621 026 |
| Edge protector for test lane TL / SL 6xx | 1 691 602 001 |

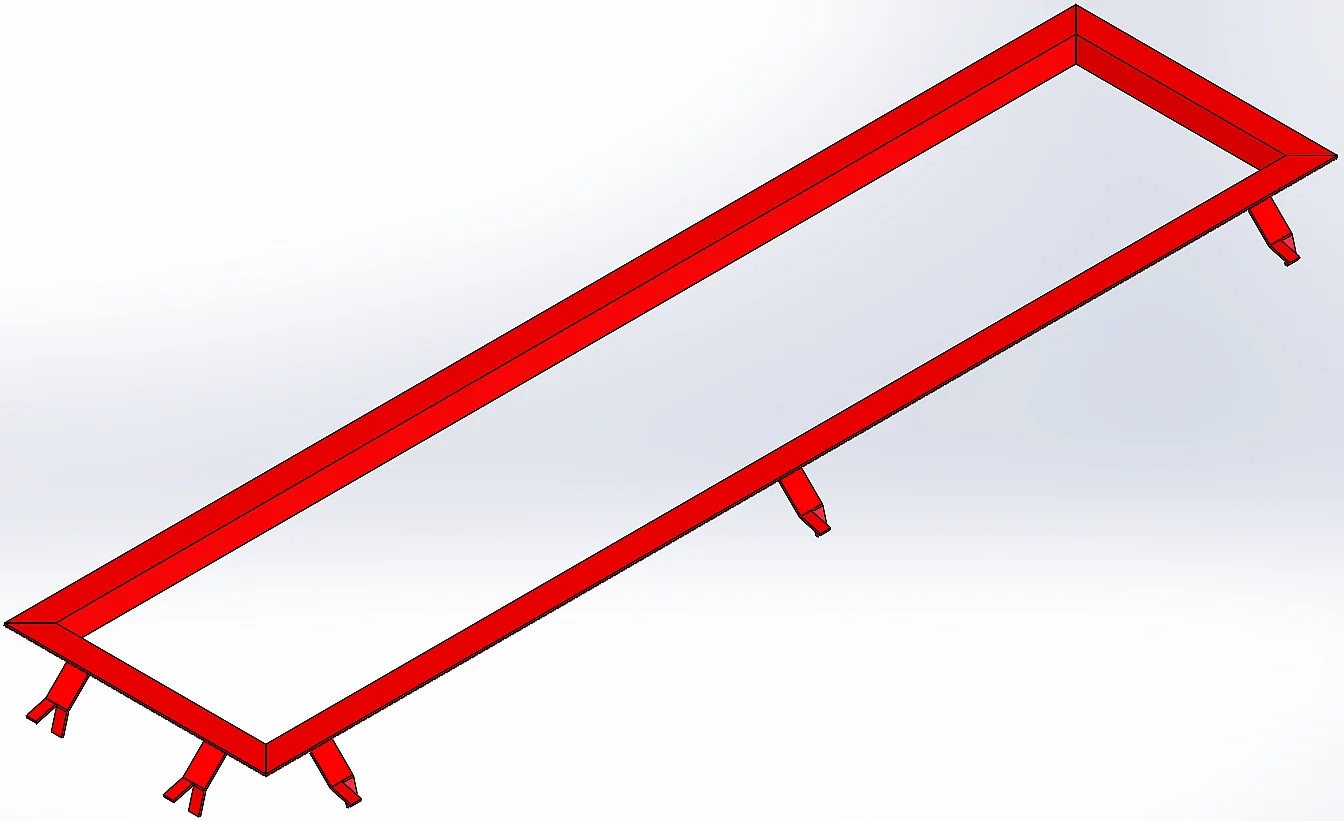

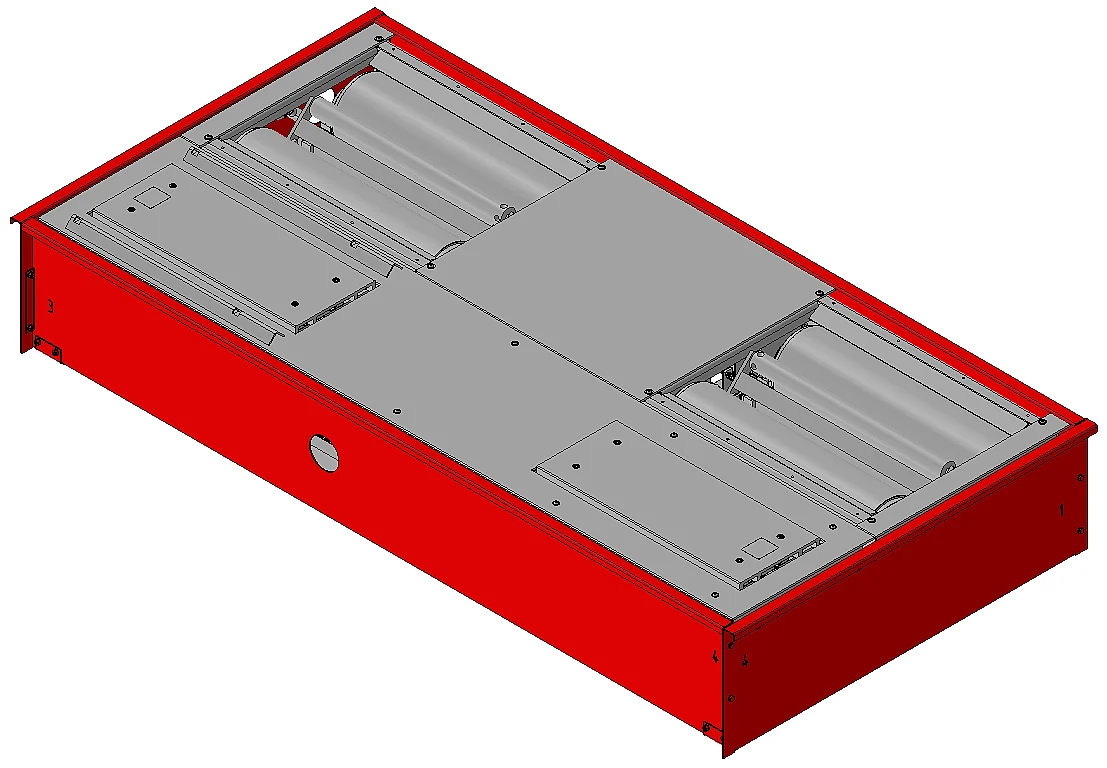

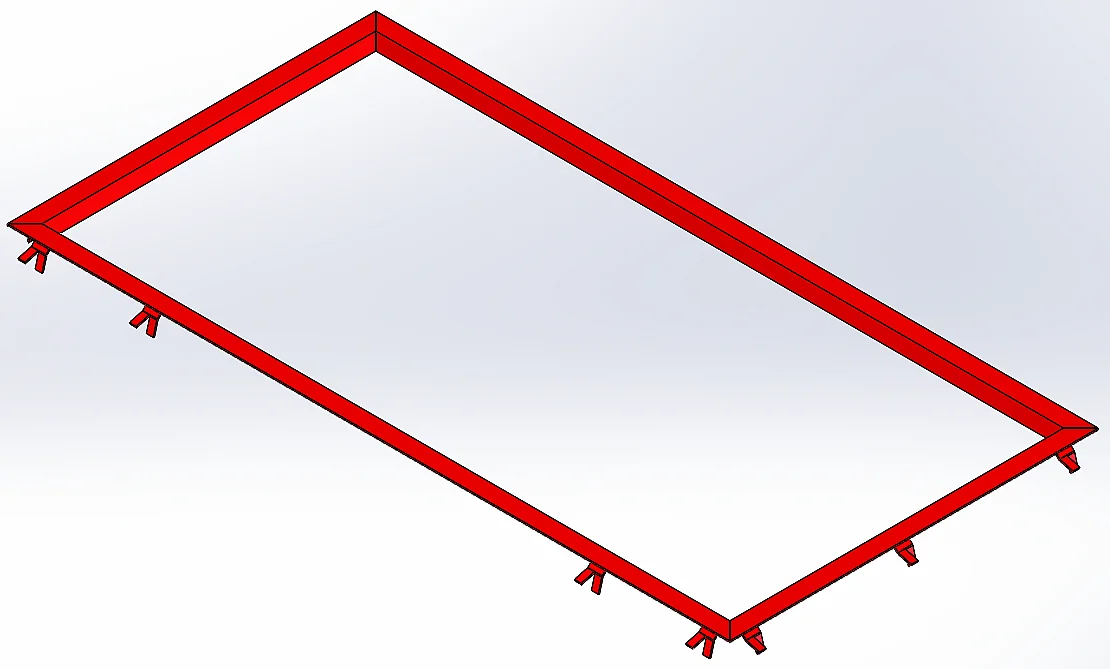

| Installation frame for test lane with EUSAMA suspension tester | 1 691 602 002 |

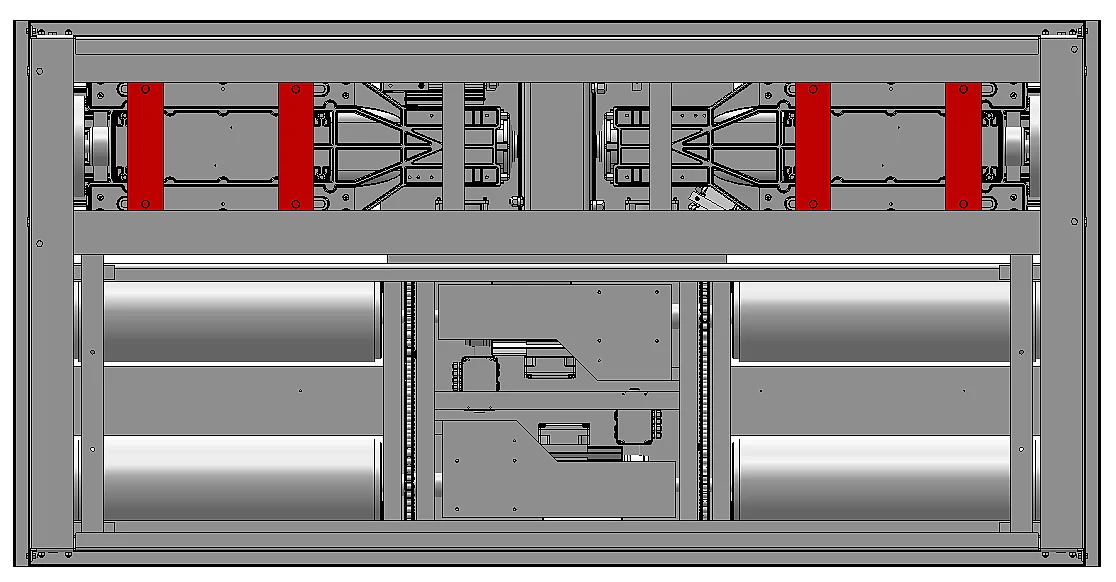

| Spacer for BD 4xxx in combination with SA 640 / SN 680 | 935 603 042 |
| Clamp set for EUSAMA suspension tester | 1 691 621 000 |
| Installation kit for suspension tester SA 640 | 1 691 621 001 |
| Cable set 400 V | Power-Box to suspension tester | 30 m | 1 691 603 369 |
| Cable set BNet-Cable | Power-Box to suspension tester | 30 m | 1 691 602 557 |
| Positioning ramps for suspension tester | 1 691 621 017 |
