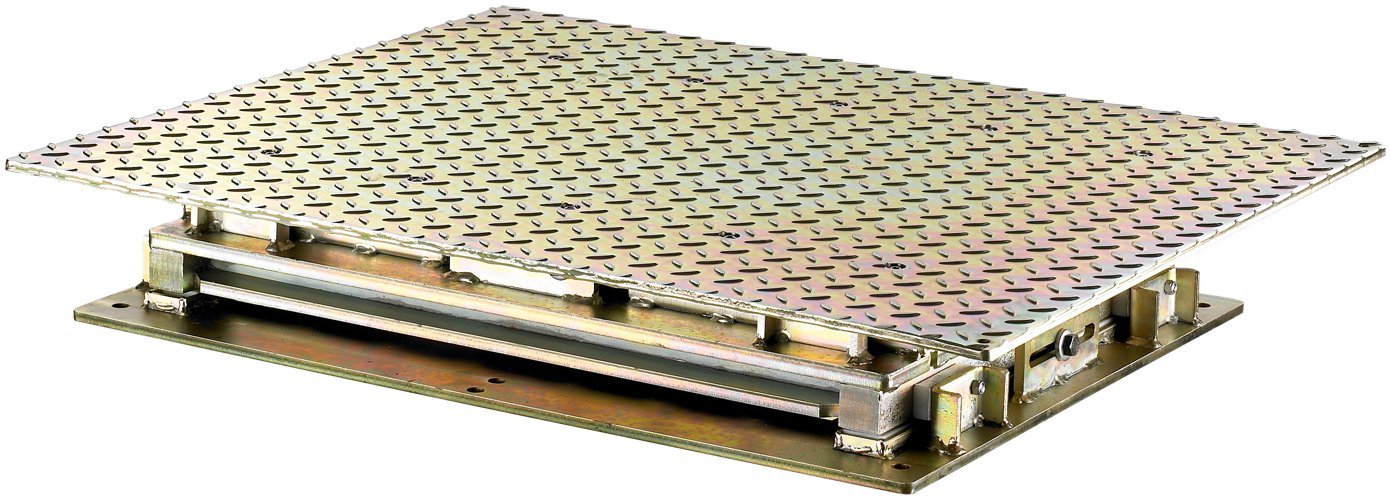

Joint play detector GST 8508 | 400V
Quick detection of defects and wear on suspension systems on two-tracks trucks with up to 16t axle load. Stand alone product
Article number: 1 691 850 100
| Weight | 334 kg |
|---|---|
| Packing | 820 x 820 x 950 mm |
| Fuse protection | 3 x 10 A |
| Rated load capacity | 16000 kg |
| Test speed | 75 mm/s |
| Maximum load per axle | 16000 kg |
| Power supply | 3 x 400 V | 50 Hz |
| Temperature range | - 10 - + 60 °C |
| Shear force | 30 kN |
| Dimensions - cover-/test plate | 800 x 780 mm |
| Plate movement horizontal | 100 mm |
| Plate movemnt vertical | 100 mm |
| Control | Kabelfernbedienung |
| Test plate weight | 140 kg |
| Hydraulic unit operating pressure | 180 bar |
| Hydraulic unit power | 2,2 kW |
| Test plate height | 158 mm |
| Gross weight | 344 kg |
| Hydrauliköl | DIN 51524 VG 22 |
| Hydraulic oil quantity | 18 l |
| Foundation frame set | GST 8508 & GST 8600 | 1 691 851 101 |
|---|
