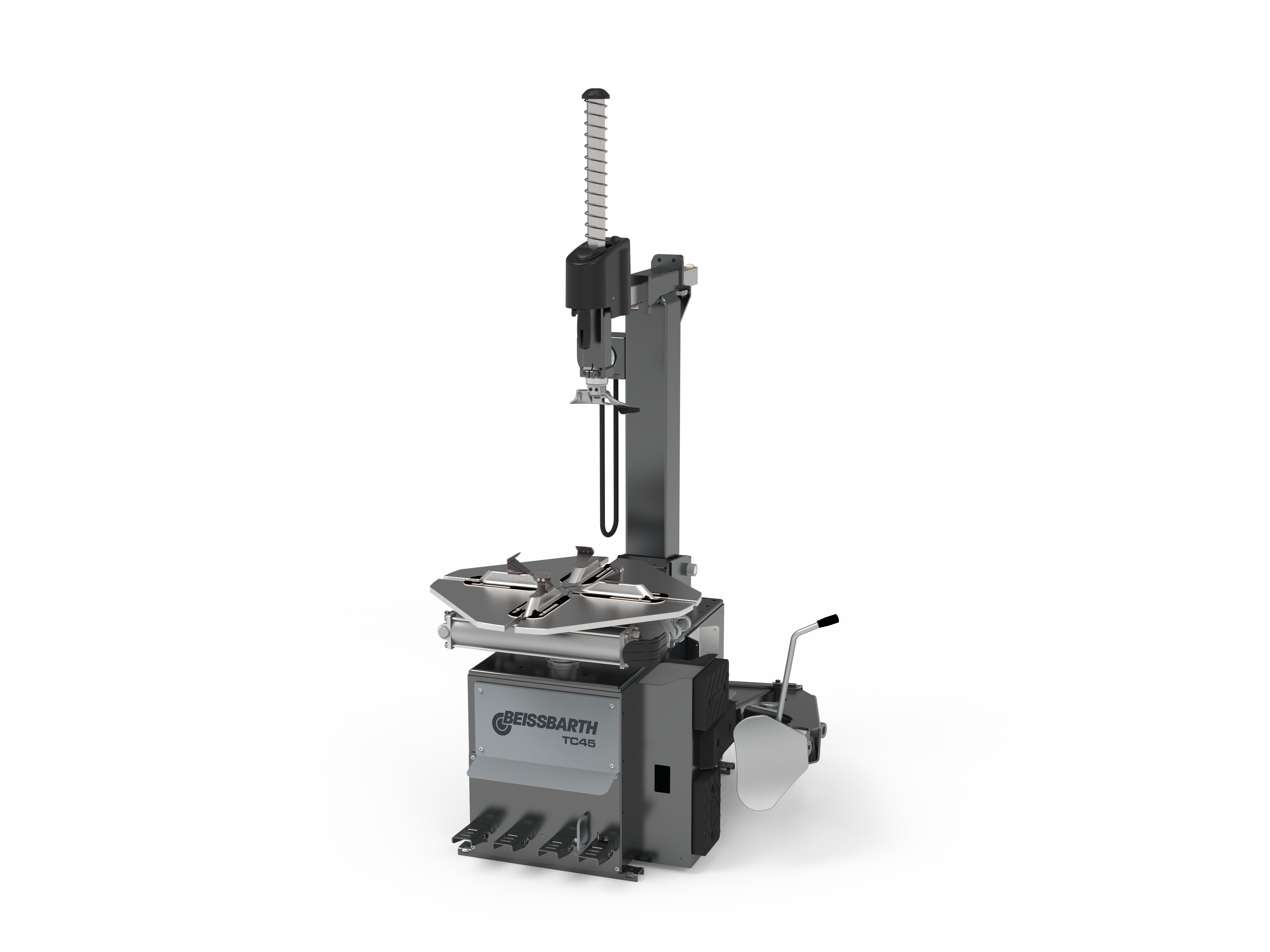

TC45 | TI Version
Automatic tilt-back tyre changer | 10-27" working range | 15" standard bead breaker | jaw inflation technology | 50-60Hz | 1 Speed
Article number: 1 692 401 013
Square turntable with automatic centering jaws
- Clamping range from 10-27"
- Double 80mm cylinders for maximum clamping power
- 2 rotation speeds: 8 & 16 rpm
- Square shape for easier lever use
Robust mounting column and head
- Easy tilting via pedal
- Quick vertical and horizontal movement of arm
- Pneumatic locking
Powerful bead breaker side shovel
- Quick and effective loosening of the bead
- Up to 15" tyre width
- Three-way adjustable blade
- Controlled via pedal
- Anti-skid rubber pad protects tyre and rim
Full control with four pedals plus side inflation pedal
- Pedal control for rotation, side shovel, column tilting, and clamping
- Removable pedal unit for easier maintenance
- Safety separator for rotation pedal
- Side inflation pedal
High rigidity by design
- Full metal pedals
- Powerful 50x50mm horizontal arm
- Metal front cover
TI: Tire inflation via claws
- Fast and secure gripping of the bead on the rim
- Both hands free during inflation and bead seating
- Minimizes the risk of air leaks or tire bursts
- Easy tire inflation via claws
- 18-liter air tank
Upgrade options:
- TCX.PRO, PRO2 or PRO3 assistance column
- Side lift
- Tubeless inflation kit
- Roller board
Scope of deliveries:
- 5x front head protection
- 2x rear head protection
- Standard lever
- Brush
- Plug
Note: unit comes with disassembled pole
| Max. wheel diameter | 46" | 1160 mm |
|---|---|
| Operating pressure | 8 - 12 bar |
| Rapid inflation | ja |
| Max. wheel width | 15" | 381mm |
| Length | 1450 mm |
| Height | 1900 mm |
| Width | 1030 mm |
| Power supply | 230V | 1Ph | 50-60Hz |
| Motor power | 1,1 kW |
| Max. clamping capacity | 27 " |
| Max. torque | 1200 Nm |
| Space requirement width | 1450 mm |
| Space requirement length | 1850 mm |
| Rotation speed | 7,5 rpm |
| Packaging length | 750 mm |
| Packaging width | 1100 mm |
| Packaging height | 1100 mm |
| Min. clamping capacity | 10 " |
| Number of mounting speeds | 1 |
| Clamping device design | Clamping plate |
| Min. inner clamping range | 12 " |
| Max. inner clamping range | 27 " |
| Min. outer clamping range | 10 " |
| Max. outer clamping range | 24 " |
| Mounting head design | With tire lever |
| Mounting arm design | Moveable |
| Mounting column design | tiltable |
| Bead breaker cylinder force | 25000N @ 10bar |
| Beda breaker force on shovel | 13000N @ 10bar |
| Tyre inflation | Claw inflation |
| Turntable height | 670 mm |
| Bead breaker operation | Foot control |
| Stackable | 2 Piece(s) |
| Units per 20ft container | 30 Piece(s) |
| Units per 40ft container | 60 Piece(s) |
| Storage kit | for TC22, TC45 and TC47L | 1 692 402 014 |
|---|---|
| Assistance column | TCX.PRO | 1 692 402 018 |
| Assistance column | TCX.PRO2 | 1 692 402 017 |
| Assistance column | TCX.PRO3 | 1 692 402 015 |
| Pneumatic helper arm | for TCX.PRO2 and PRO3 | 1 692 402 016 |
| Rim protector | 1 692 402 027 |
| Plastic mounting head | TC22 and TC45 | 1 692 402 026 |
| Mounting head | for motorcycles | 1 692 402 032 |
| Lever | for RFT and UHP tyres | 1 692 402 037 |
| Lever | WDK | 1 692 402 038 |
| Protection | for WDK lever | 1 692 402 020 |
| Roller bed | for TC22, TC45 and TC47L | 1 692 402 036 |
| Set clamping jaws | 4 pcs. | for motorcycles | 1 692 402 033 |
| Set clamping jaws | 4 pcs. | for scooters | 1 692 402 034 |
| Quick inflation system | for TC45 and TC47L | 1 692 402 029 |
| Quick change kit for mounting head | 1 692 402 025 |
| Bead breaker shovel protection | 1 692 402 023 |
| Protection for lever | 1 692 402 022 |
| Protection kit clamping jaws | 4 pcs | for TC22, TC45 and TC47L | 1 692 402 021 |
| Protection kit mounting tool | 10x front + 10x rear | 1 692 402 019 |
| WDK Kit with mounting lever | 1 692 402 030 |
| WIKA inflating gun with pressure gauge | 1 692 402 028 |
| BeadLock Pro | with extension | 1 692 402 003 |
| Bead clamp | 1 692 402 031 |
