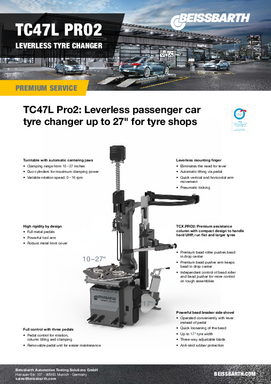

TC47L Pro2 | WDK
Leverless table-top tyre changer | 10-27" working range | 17" premium bead breaker | pedal inflation | TCX.PRO2 assistance column | WDK | Leverless | 230V
Article number: 1 692 401 005
Square turntable with automatic centering jaws
- Clamping range from 10-27"
- Double 80mm cylinders for maximum clamping power
- Infinitely variable speed from 0 to 16 rpms
Leverless demounting group
- No need for lever
- Reduced stress on tyre
- Safe demounting of difficult tyres
- Secured with strong spring-loaded 41mm hexagonal arm
Robust mounting column and leverless tool
- Easy tilting via pedal
- Quick vertical and horizontal movement of arm
- Pneumatic locking
Powerful bead breaker side shovel
- Activated via lever instead of pedal
- Ergonomic control without sidesteps
- Quick and effective loosening of the bead
- Up to 17" tyre width
- Three-way adjustable blade
- Anti-skid rubber pad protects tyre and rim
Full control with three pedals and side inflation pedal
- Pedal control for rotation, column tilting, and clamping
- Removable pedal unit for easier maintenance
- Safety separator for rotation pedal
- Side inflation pedal
High rigidity by design
- Full metal pedals
- Powerful 60x60mm horizontal arm
- Metal front cover
- Reinforced pole
TCX.PRO2: premium assistance column with compact design to handle hard UHP, run flat and larger tyres
- Premium bead roller to push bead in drop center
- Premium travelling bead pusher arm to keep bead in drop center during rotation
- Independent height adjustment of all tools for more flexibility and control
WDK-approvedSecure mounting and demounting of UHP and runflat tyres
Upgrade options:
- Side lift
- Tubeless inflation kit
- Roller board
Scope of deliveries:
- 5x front protection (leverless)
- 2x rear protection (leverless)
- 4x Clamping jaw protection
- WDK mounting clamp RFT/UHP
- WDK rim protector
- Bead breaker blade protection
- Brush
- Plastic lever
- 230V plug
Note: unit comes fully assembled
| Max. wheel diameter | 46" | 1170mm |
|---|---|
| Bead breaker force | 2800 N |
| Operating pressure | 8 - 12 bar |
| Max. wheel width | 17" | 423mm |
| Length | 1450 mm |
| Height | 2300 mm |
| Width | 1030 mm |
| Power supply | 230V | 1Ph | 50-60Hz |
| Motor power | 1,5 kW |
| Max. clamping capacity | 27 " |
| Max. torque | 1200 Nm |
| Space requirement width | 1450 mm |
| Space requirement length | 1850 mm |
| Rotation speed | 0 - 16 rpm |
| Packaging length | 1260 mm |
| Packaging width | 1260 mm |
| Packaging height | 2100 mm |
| Min. clamping capacity | 10 " |
| Number of mounting speeds | stufenlos |
| Clamping device design | Clamping plate |
| Min. inner clamping range | 12 " |
| Max. inner clamping range | 27 " |
| Min. outer clamping range | 10 " |
| Max. outer clamping range | 24 " |
| Mounting head design | Without tire lever |
| Mounting arm design | Moveable |
| Mounting column design | tiltable |
| Bead breaker cylinder force | 25000N @ 10bar |
| Beda breaker force on shovel | 13000N @ 10bar |
| Tyre inflation | Foot control |
| Turntable height | 670 mm |
| Bead breaker operation | manual control |
| Units per 20ft container | 4 Piece(s) |
| Units per 40ft container | 9 Piece(s) |
| Storage kit | for TC22, TC45 and TC47L | 1 692 402 014 |
|---|---|
| Roller bed | for TC22, TC45 and TC47L | 1 692 402 036 |
| Quick inflation system | for TC45 and TC47L | 1 692 402 029 |
| Front protection leverless mounting tool | 10 pcs. | 1 692 402 001 |
| Rear protection leverless mounting tool | 10 pcs. | 1 692 402 002 |
| Protection kit clamping jaws | 4 pcs | for TC22, TC45 and TC47L | 1 692 402 021 |
| BeadLock Pro | with extension | 1 692 402 003 |
| WIKA inflating gun with pressure gauge | 1 692 402 028 |
| Bead clamp | 1 692 402 031 |
| Rim protector | 1 692 402 027 |
