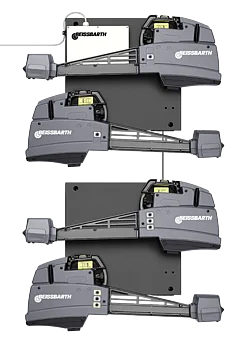

Wheel Aligner Easy CCD+ | Tablet
CCD wheel aligner with Tablet, MultiFit wheel clamps, turntables, and wall storage
Article number: 1 690 310 080
Ideal for occasional wheel alignments

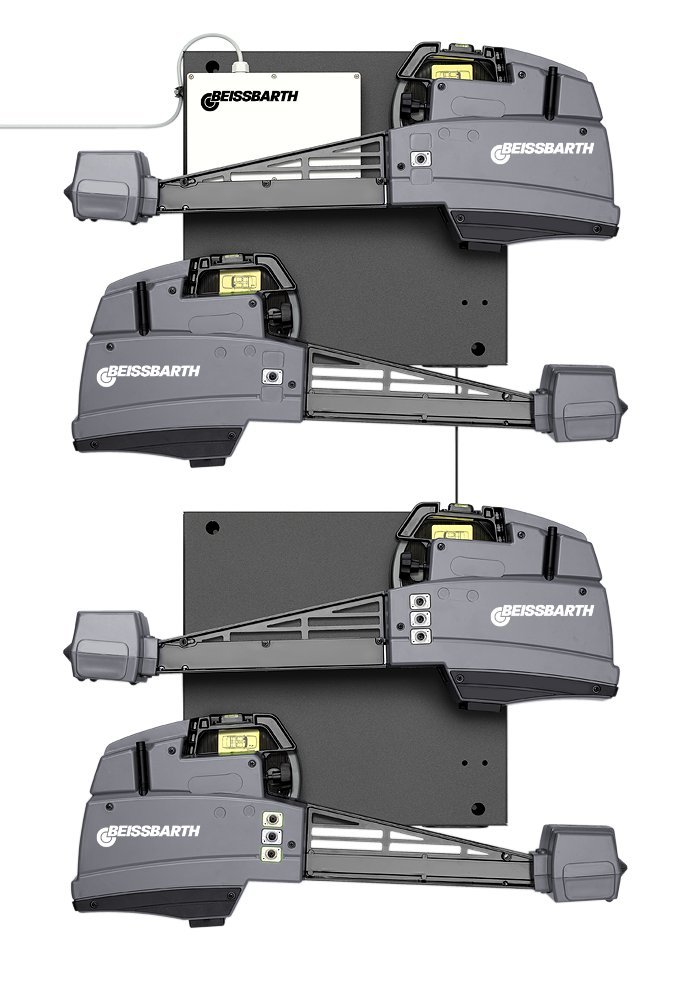

- Space-saving storage of sensor heads, clamps and tablet on the wall
- No trolley
- Ready for use at any time
- Compatible with all wheel alignment lifts

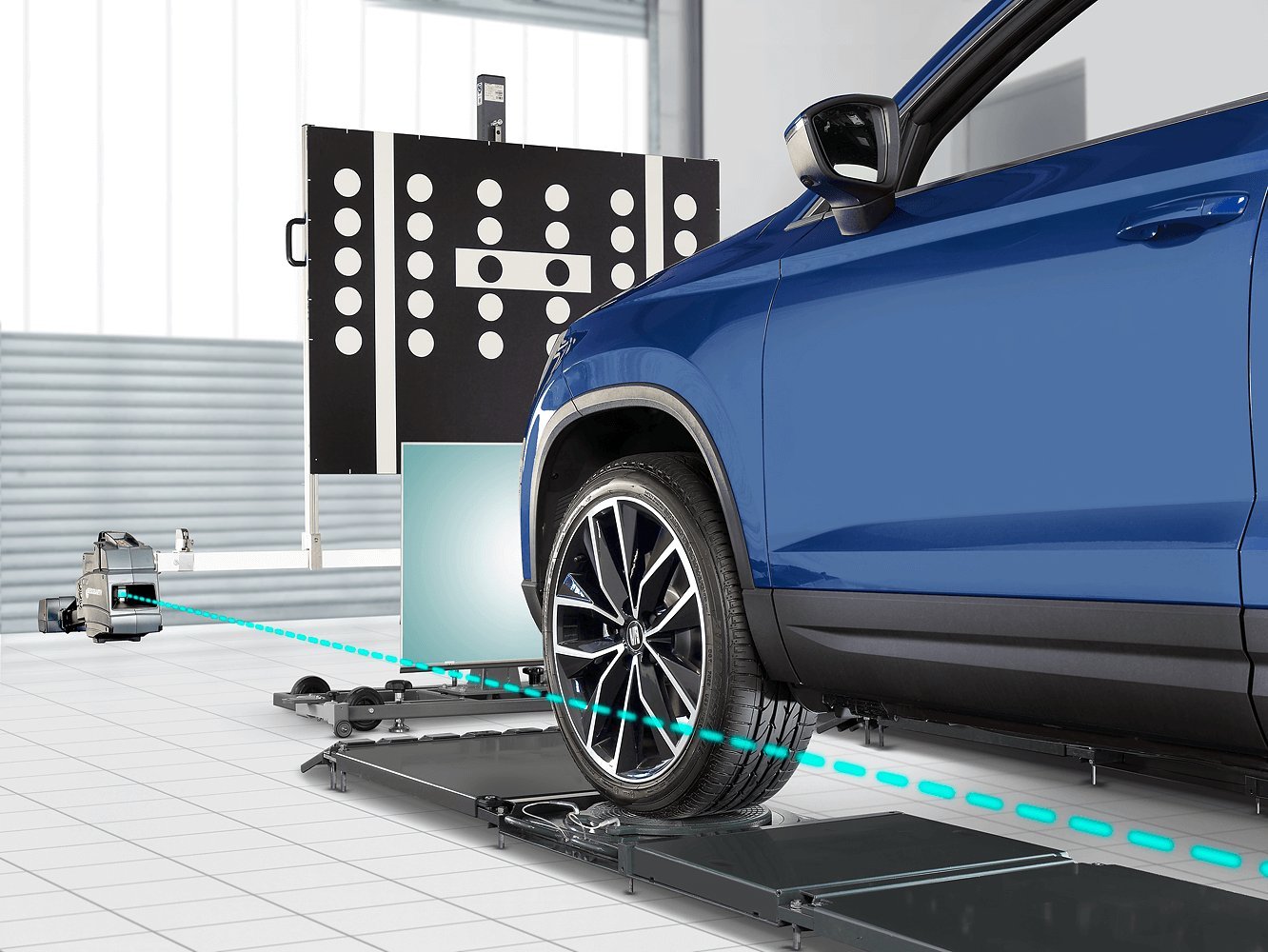

Perfectly integrated into driver assistance system calibration (ADAS) and headlight testing:
- The space in front of the platform can be used for calibration targets and headligtht tester
- Permanent monitoring and precise alignment of the alignment tool to the geometric driving axis
- No extra cameras or holders are required for ADAS calibration
Best in class: maximum accuracy
- 360° measuring field ensures permanent self-monitoring and adjustment of the system
- Rolling compensation on four wheels simultaneously without time-consuming lifting of the vehicle
- No binding or calibration to a specific lift
- Radio transmission and battery operation ensure full mobility
- Intelligent charging concept via wall solution
- Quality Made in Germany
Scope of delivery:
- EasyCCD sensor head
- +Software with Smart-Test quick measurement and ADAS calibration option
- Windows 11 tablet
- Wall mount storage and charging solution
- 4x MutliFit clamps
- 2x turntable incl. filling pieces
- Wall bracket for MultiFit
- Brake lock
- Steering wheel lock
| Display | 11,6" Touchscreen |
|---|---|
| Operating temperature | 5 - 40 °C |
| Electrical connection | 230 V / 50 - 60 Hz |
| Sensor count | 8 |
| Data transmission type | 433MHz |
| Measuring system | CCD |
| Storage temperature | -20 - 60 °C |
| Run-out compensation | Ja |
| Clamping range of wheel clamps | 13 - 22 " |
| Country of Origin, customs | DE |
| Relative humidity, use | (40 °C) 10 - 90 % |
| Workshop-Net | Standard |
| Load capacity per turntable | 1500 kg |
| Vehicle database update Cars & Vans Europe | Key Card | 1 690 002 015 |
|---|---|
| Sliding plate for rear axle | short | 1 690 401 003 |
| Sliding plate for rear axle | long | 1 690 401 004 |
| Drive-on ramps for two aluminum turntables | 1 690 701 052 |
| Drive-on ramps for turntables and sliding plates | 1 690 401 008 |
| Extension set for Multi-fit clamps | 23 - 28" | 1 690 311 113 |
| Set softline claws for 1 x Multi-fit clamp | Softline rims | 1 690 311 164 |
| Set truck claws for 1 x Multi-fit clamp | Truck | 1 690 311 115 |
| Central clamp Porsche Carrera GT | 1 690 301 002 |
| Central clamp Porsche 911 GT3 and Turbo | 1 690 380 002 |
| Self-centering quick clamp for Porsche | 1 690 380 010 |
| Self-centering quick clamp for Tesla | 1 690 380 161 |
| Self-centering quick clamp for Ferrari | 1 690 381 299 |
| Quick clamp Mercedes-Benz | OEM | 1 690 801 002 |
| Quick clamp BMW | OEM | 1 690 801 001 |
| Distance bolts for quick clamp Mercedes Benz | 100 mm | 1 690 801 007 |
| Distance bolts for quick clamp BMW | 120 mm | 1 690 801 003 |
| Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm | 1 690 401 019 |
| Precision spoiler adapter Porsche | 1 690 301 004 |
| Spoiler adapter 50 mm | 1 690 401 005 |
| Spoiler adapter 100 mm | 1 690 121 001 |
| Wallboard for sensor heads | 1 690 311 146 |
| Cable set | 1 690 401 012 |
| Toe press bar for Mercedes Benz | 1 693 600 001 |
| Ballast bag 5 kg | 1 693 740 001 |
| Ballast bag 8 kg | 1 693 740 693 |
| Ballast bag 10 kg | 1 693 740 002 |
| Ballast bag 20 kg | 1 693 740 003 |
