Q.Lign T.41 Kit - BYOD

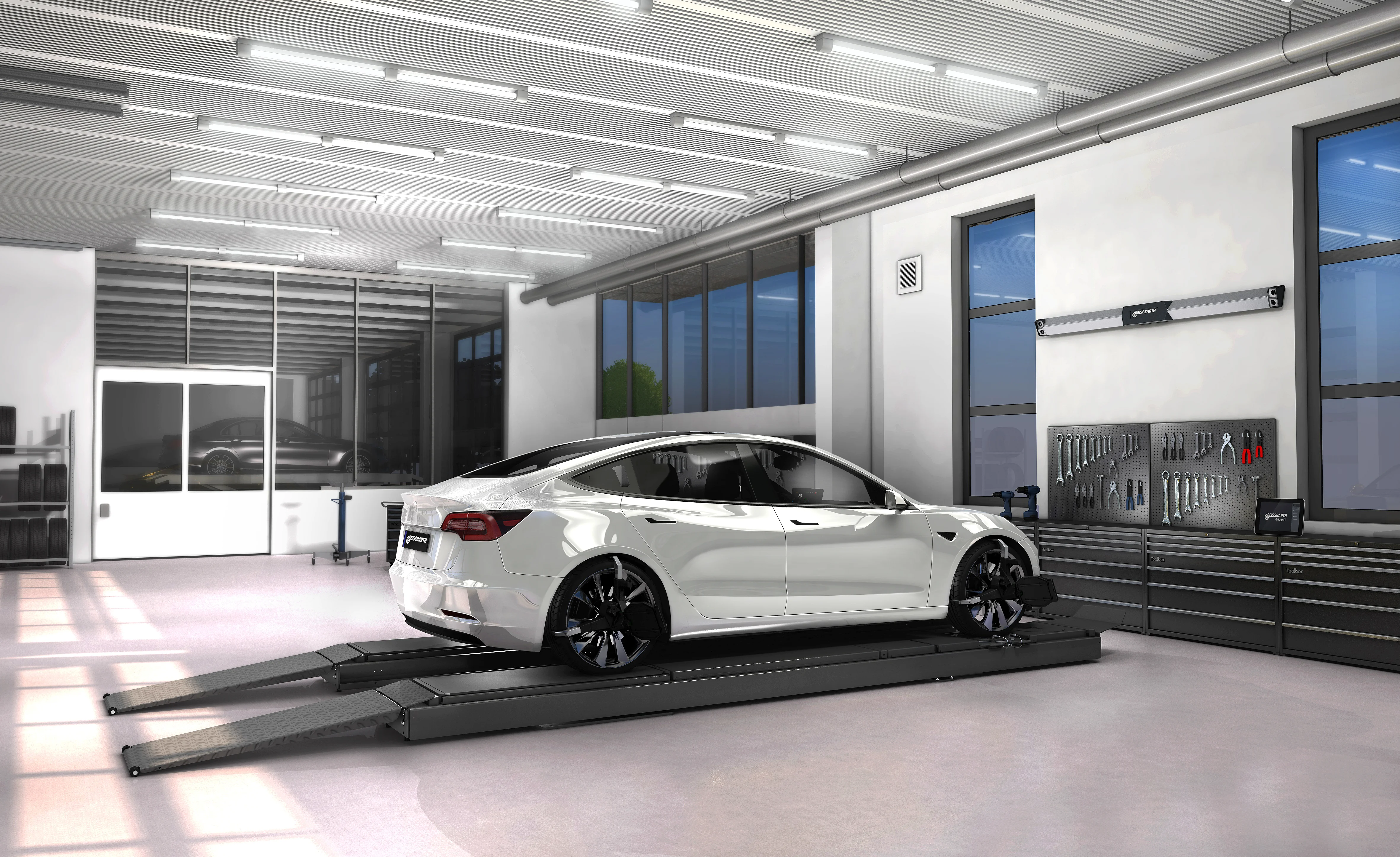

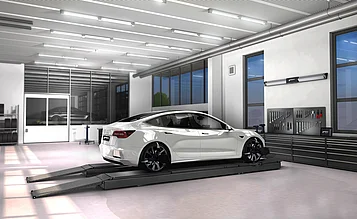

Q.Lign T.41 as kit version for wall mounting for 360° access to the lift. For customized customer solutions. Without Tablet, wheel clamps and turntables.
Article number: 1 690 800 011
Ultimate productivity - vehicle after vehicle
The T-Series builds on the existing Q.Lign platform and focuses entirely on wheel alignment. With Q.Lign T.41, workshops raise the bar even higher and can thus exploit their full service potential.
Measuring at the highest level
- Camera beam measures permanently from a height of 2.8 meters
- No motor, no winch, no wear and tear
- No up, no down, no injuries or damage
- No movement, no matter if short or long wheelbases
Everything perfectly in sight
- Four wheels, four cameras
- Separate camera for the rear axle for more accurate toe values on the front axle
- Install anywhere within 1.8 to 3.3 meters of the front axle
- Measure and adjust from 0 to 2 meters platform height at any time
Work smarter, not harder
- Measurement starts directly with attachment of the targets to quickly determine accident vehicles
- All targets work on any wheel reduces setup times and setup errors
- Active MEMS Technology: Constant measurement against gravity for uncompromising accuracy
- Caster sweep at floor level without the need for a stool or ladder
- Access to clear and easy-to-understand PDF reports from anywhere inside your shop
The world's first web-based wheel aligner
- Eliminates need for trolley and PC and creates more space
- Incredibly efficient with up to 95% power savings compared to PC-based systems
- Stream-to-X: Access software on any TV, PC, laptop, tablet or smartphone
- Intuitive software, streamlined operations, more productivity
- Easy integration of Q.Lign into your shop's daily processes and systems
Full speed, without compromising on precision
- Powerful software with optimized workflow for the entire wheel alignment process
- Reduced runout process for more productivity
- 3D camera technology produces highly accurate realtime measurements
Space requirement
- Minimum height of 2800mm
- Minimum clearance of 2800mm on four-post lifts
Scope of delivery
- Camera beam with 4 cameras
- Q.Lign display module
- 4x targets with AutoID
- Powerbox for power supply
- 2x WiFi modules
Important: This version is for full customization for the customer. To complete the BYOD Kit version, the following items need to be purchasd separately: control and display unit (Monitor with mouse and keyboard or Android tablet), turnplates and fillers, wheel clamps, brake and steering wheel lock.
| Packaging unit | 1 Piece(s) |
|---|---|
| Electrical connection | 90-264V | 1Ph | 47-63Hz |
| Individual toe front/rear axle | Ja |
| Total toe | Ja |
| Toe-out on turns | Ja |
| Camber front/rear axle | Ja |
| Caster | Ja |
| SAI | Ja |
| Set-back | Ja |
| Thrust angle | Ja |
| Sensor count | 4 Piece(s) |
| Data transmission type | kabellos |
| Measuring system | 3D mit Messbalken (fixiert) |
| Display size | 10 " |
| Power consumption | 45 W |
| Wheel base | 1750 - 4600 mm |
| Space requirement width | 2595 mm |
| Run-out compensation | Ja |
| Individual toe front axle | Ja |
| Individual toe rear axle | Ja |
| Camber front | Ja |
| Camber rear | Ja |
| Set-back front axle | Ja |
| Set-back rear axle | Ja |
| Geometric centre line | Ja |
| Included angle | Ja |
| Ride height modified vehicle specs | Yes |
| Vehicle dimensions live | Ja |
| Set-up height | 2800 mm |
| Country of Origin, customs | DE |
| Number of languages (software) | 30 |
| Distance camera - center of turntable | 1800 - 3300 mm |
| Clearance front posts of lift min. | 2800 mm |
| Wall mount | Q.Lign T-Series | 550-870mm | 1 690 801 053 |
|---|---|
| Magnetic clamps for wheel bolts | 100mm | 1 690 701 521 |
| Magnetic clamps for wheel bolts | 75mm | 1 690 701 508 |
| Self-centering quick clamp for Tesla | 1 690 380 161 |
| Self-centering quick clamp for Porsche | 1 690 380 010 |
| Self-centering quick clamp for Porsche | 1 690 301 003 |
| Central clamp Porsche Carrera GT | 1 690 301 002 |
| Central clamp Porsche 911 GT3 and Turbo | 1 690 380 002 |
| Self-centering quick clamp for Ferrari | 1 690 381 299 |
| Self-centering quick clamp | for Lamborghini | 8 900 380 016 |
| Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs. | 1 690 311 112 |
| Adapter set Q.Grip | for Q.Lign | 4 pcs. | 1 690 101 010 |
| ProClamp wheel clamp | 13 - 23" | 1 pc | 1 690 100 001 |
| Quick clamp Mercedes-Benz | OEM | 1 690 801 002 |
| Quick clamp BMW | OEM | 1 690 801 001 |
| Extension set for Multi-fit clamps | 23 - 28" | 1 690 311 113 |
| Mechanical aluminum turntable Standard | 1 690 501 001 |
| Mechanical aluminum turntable Precision | 1 690 401 028 |
| Electronic aluminum turntable without connecting cable | Standard | 1 690 401 011 |
| Electronic aluminum turntable without connecting cable | Precision | 1 690 401 013 |
| Filling piece for aluminum turntable | 1 690 702 082 |
| Filling piece for aluminum precision turntable | 1 690 102 041 |
| Storage kit | for 4x Q.Grip | 1 690 801 048 |
| Storage kit | for 4x MultiFit | 1 690 801 047 |
