Wheel aligner Easy CCD+ | Kit Version
Easy CCD+ Kit Version | CCD wheel alignment Kit Version, ideal for existing alignment bays!
Article number: 1 690 310 071
Perfectly integrated into ADAS calibration and head light testing:

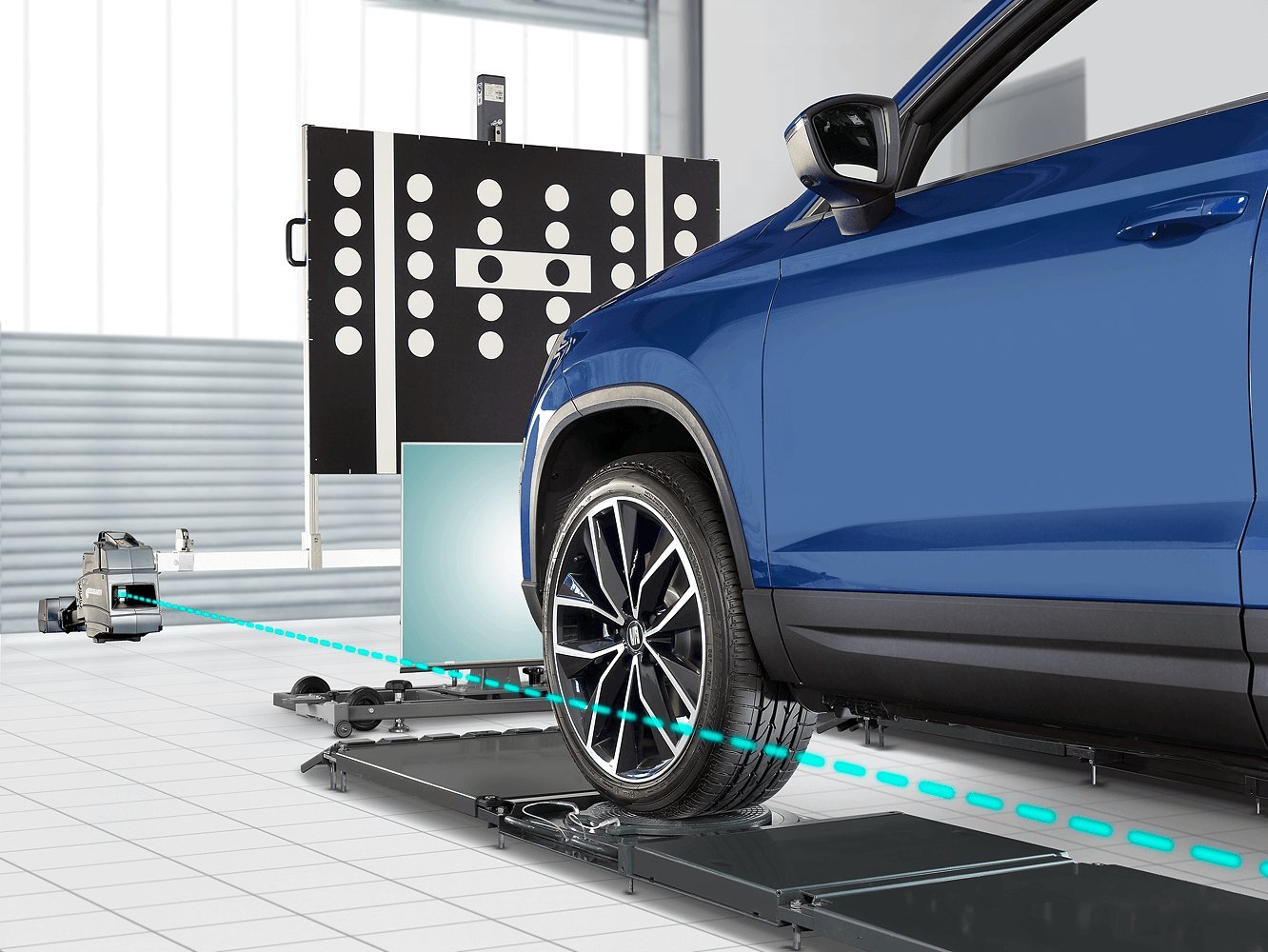

- The space in front of the lift can be used for ADAS calibration boards and head light tester
- Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
- No need for extra cameras, cables, or clamps required for ADAS calibration
Best in class: +/- 2 minute accuracy:
- 360° measurement field for permanent self-check and adjustment of system to movement and vibrations
- Rolling runout compensation eliminates time-consuming raising of vehicle and single-wheel compensation
- No calibration to a specific lift allows a measurement on any wheel alignment bay
- Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or Laptops
- Intelligent and space-saving charging solution that can be mounted on any wall
- Quality made in Germany

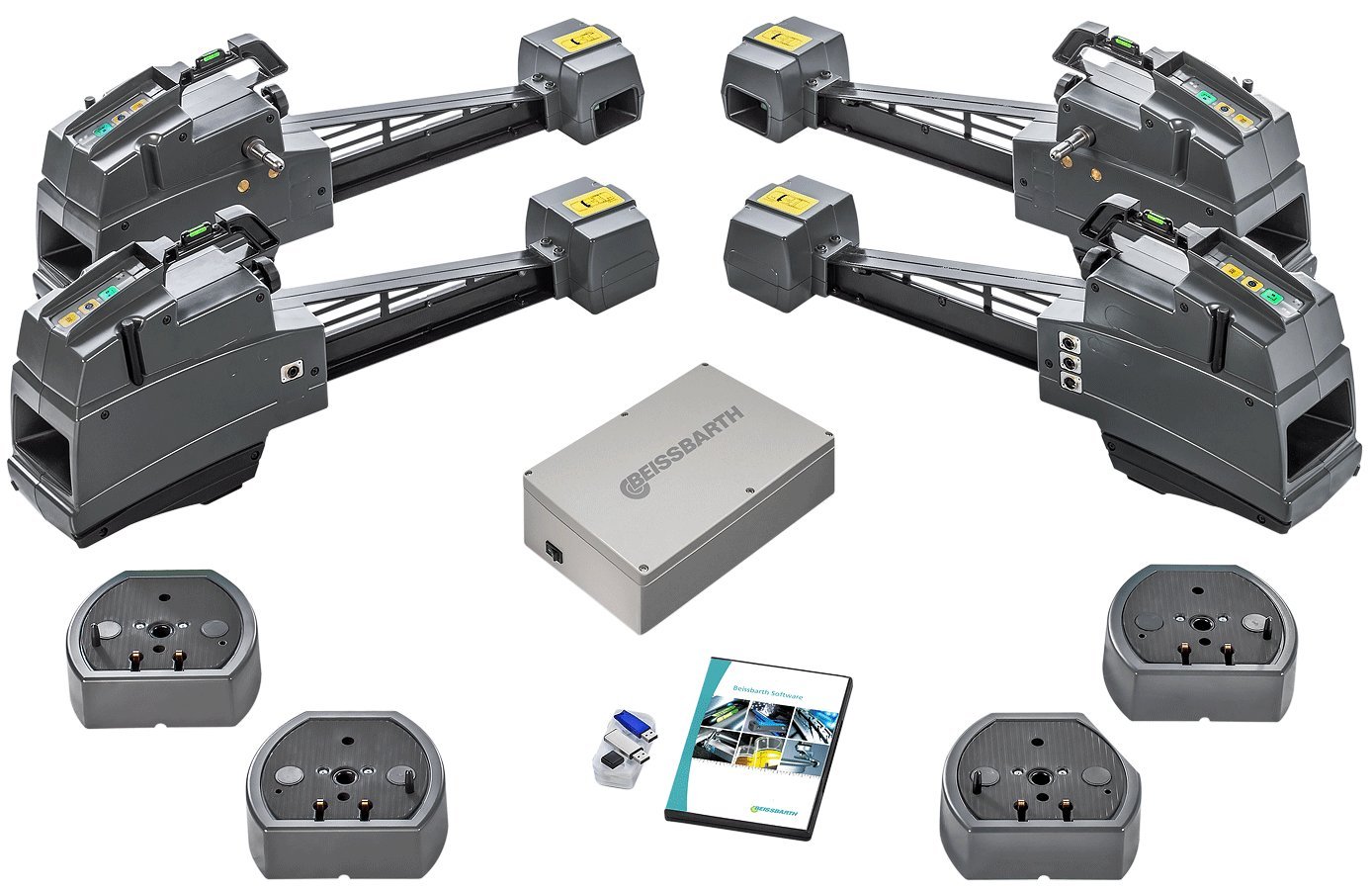

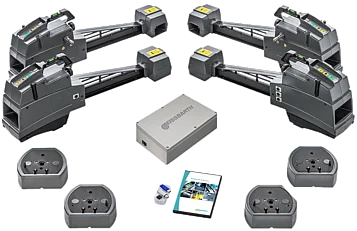

Scope of delivery:
- Sensor head with encoder and battery power
- +Software with SmartTest for direct reception and ADAS calibration Option
- Charging pods
- Vehicle specs database
| Weight | 27 kg |
|---|---|
| Operating temperature | 5 - 40 °C |
| Storage temperature | -20 - 60 °C |
| Packaging length | 850 mm |
| Packaging width | 550 mm |
| Packaging height | 820 mm |
| Gross weight | 42 kg |
| Relative humidity, use | (40 °C) 10 - 90 % |
| Vehicle database update Cars & Vans Europe | Key Card | 1 690 002 015 |
|---|---|
| Mechanical aluminum turntable Standard | 1 690 501 001 |
| Mechanical aluminum turntable Precision | 1 690 401 028 |
| Electronic aluminum turntable without connecting cable | Standard | 1 690 401 011 |
| Electronic aluminum turntable without connecting cable | Precision | 1 690 401 013 |
| Connecting cable for electronic turntables | 1 690 403 001 |
| Filling piece for aluminum turntable | 1 690 702 082 |
| Protective rubber cover for aluminum turntable | 1 690 402 001 |
| Sliding plate for rear axle | short | 1 690 401 003 |
| Sliding plate for rear axle | long | 1 690 401 004 |
| Drive-on ramps for two aluminum turntables | 1 690 701 052 |
| Drive-on ramps for turntables and sliding plates | 1 690 401 008 |
| Multi-Fit wheel clamp with standard claws | 13 - 22" | 4 pcs. | 1 690 311 112 |
| Multi-Fit wheel clamp with standard claws | 13 - 22" | 1pc. | 1 690 311 089 |
| Extension set for Multi-fit clamps | 23 - 28" | 1 690 311 113 |
| Set softline claws for 1 x Multi-fit clamp | Softline rims | 1 690 311 164 |
| Set truck claws for 1 x Multi-fit clamp | Truck | 1 690 311 115 |
| Central clamp Porsche Carrera GT | 1 690 301 002 |
| Central clamp Porsche 911 GT3 and Turbo | 1 690 380 002 |
| Self-centering quick clamp for Porsche | 1 690 380 010 |
| Self-centering quick clamp for Tesla | 1 690 380 161 |
| Self-centering quick clamp for Ferrari | 1 690 381 299 |
| Quick clamp Mercedes-Benz | OEM | 1 690 801 002 |
| Quick clamp BMW | OEM | 1 690 801 001 |
| Distance bolts for quick clamp Mercedes Benz | 100 mm | 1 690 801 007 |
| Distance bolts for quick clamp BMW | 120 mm | 1 690 801 003 |
| Distance bolts for quick clamp Mercedes Benz and BMW | 125 mm | 1 690 401 019 |
| Precision spoiler adapter Porsche | 1 690 301 004 |
| Spoiler adapter 50 mm | 1 690 401 005 |
| Spoiler adapter 100 mm | 1 690 121 001 |
| Wallboard for sensor heads | 1 690 311 146 |
| Cable set | 1 690 401 012 |
| Brake pedal depressor | 1 690 401 006 |
| Steering wheel holder | 1 690 401 007 |
| Toe press bar for Mercedes Benz | 1 693 600 001 |
| Ballast bag 5 kg | 1 693 740 001 |
| Ballast bag 8 kg | 1 693 740 693 |
| Ballast bag 10 kg | 1 693 740 002 |
| Ballast bag 20 kg | 1 693 740 003 |
