We measure where others are just guessing.
Precision at the highest level.

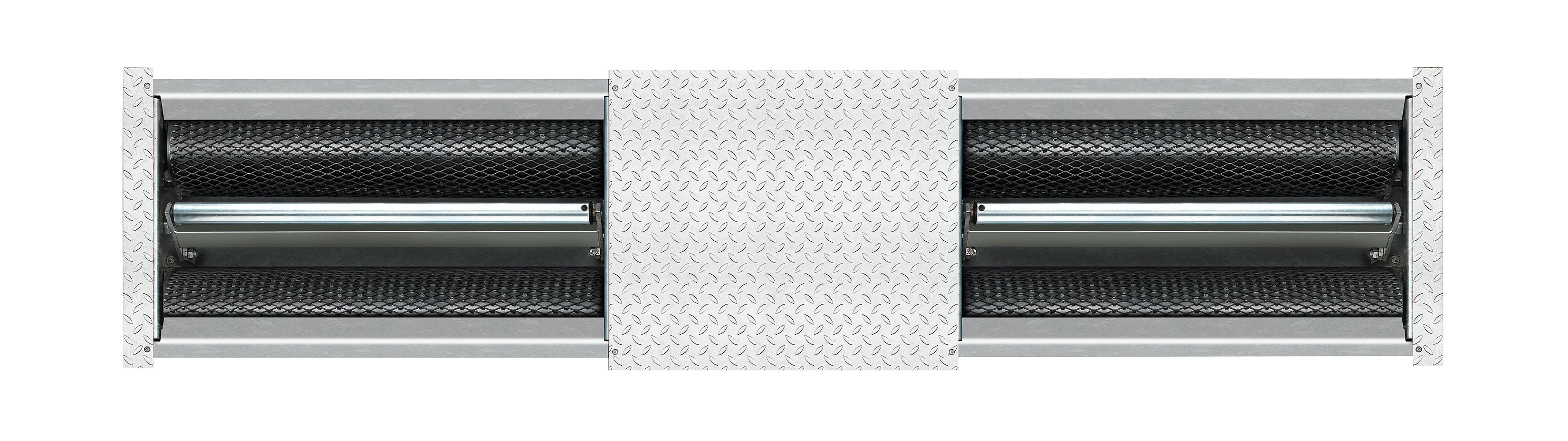

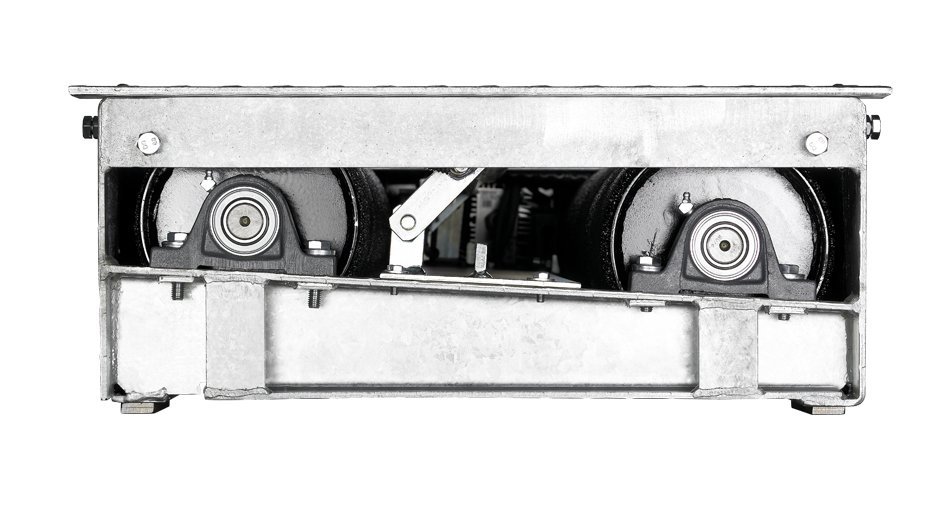

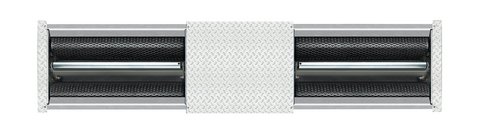

1000mm rollers | 5,0kW | 5,2km/h | 4,0t max. test load | motor brake | AWD detection | speed sensor | ASA v1.2 | galvanized | Spike rollers | with Android App
Article number: 1 691 400 105
QB.4 - the new benchmark in brake testing

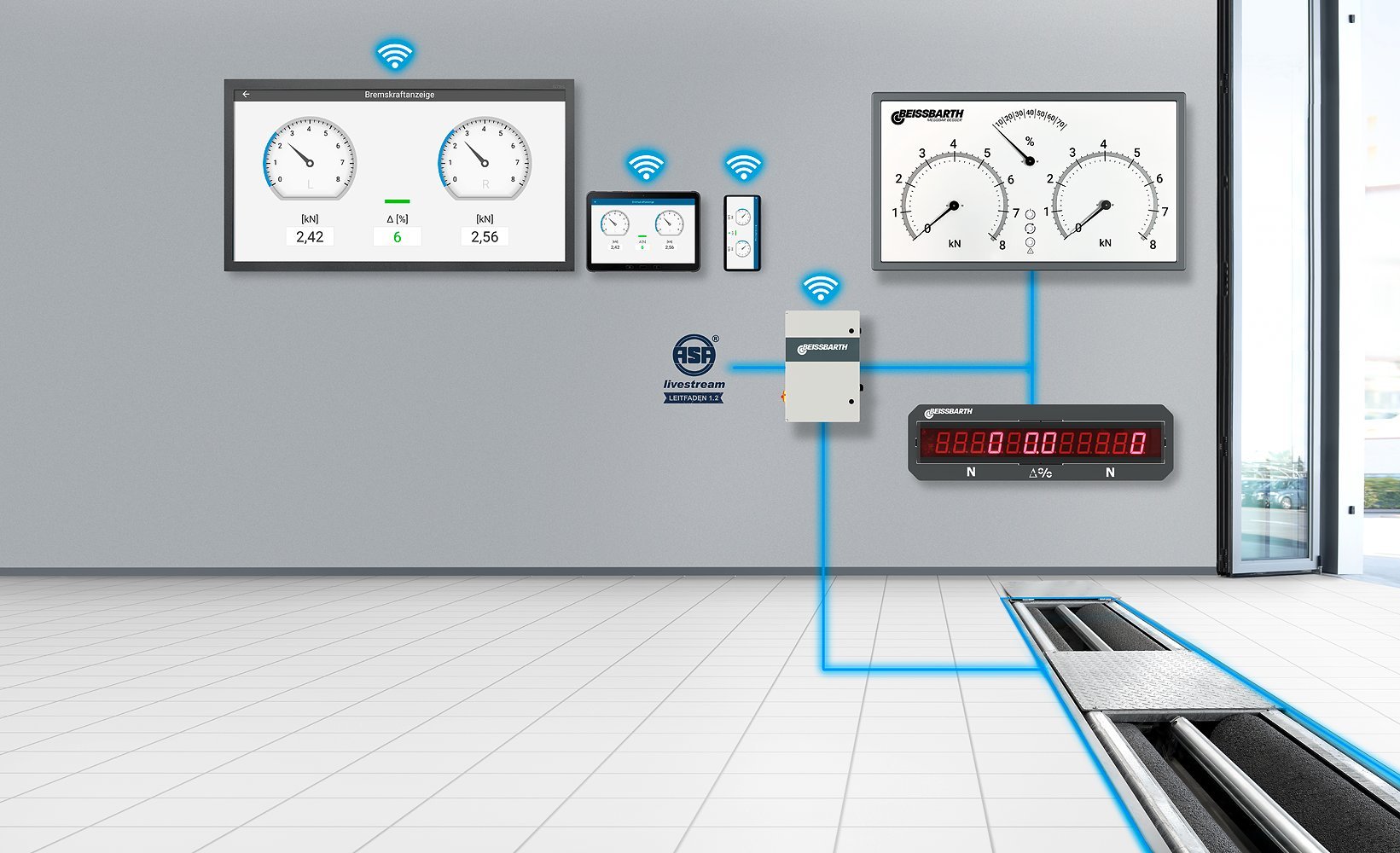

Real-time control via smartphone or tablet
Max. wheel diameter | 1000 mm |
---|---|
Protection class | IP 54 |
Electrical connection | 3 x 400 V | 50 - 60 Hz |
Measuring system | DMS |
Max. axle load testable | 4 t |
Test speed | 5,2 km/h |
Coefficient of friction dry/wet | 0,8 / 0,7 |
Roller length | 1000 mm |
Roller elevation | 25 mm |
Motor power | 2 x 5,0 kW |
Power cable length | 15 m |
Automatic switch-off function | Standard |
Corrosion preventing | Hot galvanized |
Roller diameter | 205 mm |
Number of rollers | 4 |
Min. test width | 800 mm |
Max. test width | 2800 mm |
Packaging length | 3000 mm |
Packaging width | 860 mm |
Extension assistance | Standard |
Min. wheel diameter | 320 mm |
Roller axle distance | 381 mm |
Foot-operated power meter | Optional |
Max. drive-over load | 4 t |
Height difference upper edge of roller to workshop floor | -10 mm |
ASA livestream | ja Standard |
Tablet | Optional |
Weighing system | Optional |
Automatic start-up and restart | Standard |
Start-up anti-blocking device | Standard |
Analog Display with wall bracket | QB.4 | 1 691 401 100 |
---|---|
Digital Display with wall bracket | QB.4 | 1 691 401 101 |
Wall bracket | VESA 400x400mm | 1 691 401 107 |
TV display kit | QB.4 | 1 691 403 100 |
Pedal force meter | QB.4 | 1 691 403 101 |
Edge protection for car brake tester BD 4xxx, 1000 mm | 1 691 602 151 |
Drive-over plate pluggable | 1000 mm | 1 691 602 112 |
Axle load scale 4 sensors | 1 691 601 606 |
Support strips for axle load scales | 2 pcs | 1 691 601 009 |
Tablet | Android | 10.1" | 1 693 770 644 |
The classic way to display braking forces. Consisting of two pointers, each with a scale up to 8kN for left and right brake force as well as a difference display in percent. Includes wall bracket, mounting material, power supply unit and 15m connection cable. No additonal accessories required.
3 LEDs: On/Off, Automatic ready Yes/No, Notification
L x W x H: 890 x 510 x 150 mm
Weight: 13 kg
For those who prefer digital values. Braking forces left and right are shown in Newtons. In the middle, the difference between left and right in percent. Includes wall bracket, mounting material, power supply unit and 15m connection cable. No additonal accessories required.
L x W x H: 900 x 350 x 200 mm
Weight: 13 kg
Used for displaying the braking force on a TV. The QB.4 Android app runs on an Android stick that is plugged directly into the TV. The app is operated via a small remote control. This means that any television can be used to display and control the app, without any licenses, activations or intermediate PCs. Includes power supply unit, remote control and accessories.
Measure pedal force and transmits data wirelessly at 433Mhz. The pedal force meter allows the application of the same pedal force across multiple measurements. This is particularly useful for all-wheel-drive vehicles when left and right wheels are tested individually.
