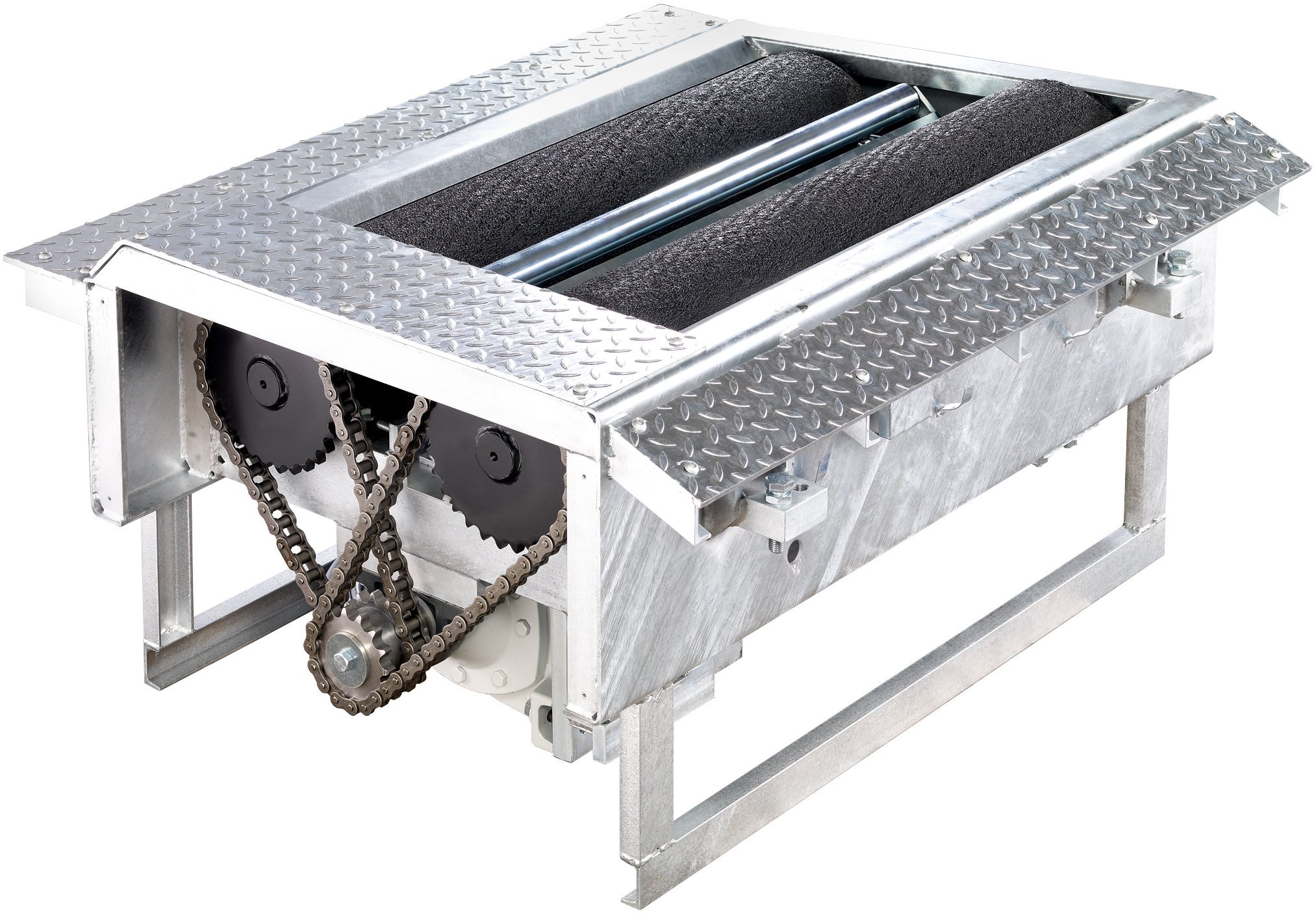

Truck Brake Tester BD 6000 | 16t | 1100mm | 8-point scale
Article number: 1 691 810 112
BD 6000: Robust mechanics, maximum reliability
Truck brake tester for premium demands
- For trucks up to 16t axle load
- Completely hot-dip galvanized
- Electromagnetic motor brake
- Quartz-coated premium rollers with 1100mm length
Fully equipped without compromise
- 8-point scale for measuring axle weight and deceleration
- 2 rotation speeds
- 4x4 automatic all-wheel drive detection
- ASA live stream
- Speed sensor
- 50 mm roller elevation for more precise and safer testing
- Including ICperform software
- Including ICperform tablet app
Display options: analog, digital or mobile
- Analog: Classic visualization on an analog display
- Digital: Full control with ICperform software on your PC
- Mobile: Measurement values directly on the tablet in the driver's seat
ICperform software – analog is so yesterday
- Additional measurement variables such as axle weight, brake force difference, minimum braking, brake pressure per axle, runout, rolling resistance, etc.
- Immediate clarity: Intuitive and quick to use
- Precise control over any axle
- Print and database function
- Connect with other devices in the test lane
ICperform via tablet app: Perform tests and control without leaving the vehicle
- No constant getting in and out of the vehicle
- Measurement values directly from the driver's seat
- Convenient control of the entire test procedure
Modularly expandable at any time
- APS3 wireless pressure sensors: wireless measurement of pressure values in truck or trailer braking systems
- BPF 200 wireless pedal force meter: wireless measurement of pedal force for high repeatability
- MSS 8400 toe tester: measures axle play and straight-line stability for wheel alignment recommendations
- GST8508 and GST8600 joint play testers: quick detection of defects and wear in the wheel suspension
Scope of delivery:
- 2x roller set with weighing function
- Control cabinet incl. ASA livestream
- 15 m cable set
- ICperform software
- ICperform tablet app
Note: a PC is required to operate the ICperform software. This should meet the following minimum requirements: Windows 7 or higher (64 bit) and 2x RS232 serial (COM) interface. The additional use of a tablet requires a PC with ICperform software and a Wi-Fi network with router.
| Max. wheel diameter | 1200 mm |
|---|---|
| Protection class | IP 54 |
| Length | 1400 mm |
| Height | 666 mm |
| Electrical connection | 400 V |
| Measuring system | - DMS |
| Width | 1151 mm |
| Max. axle load testable | 16 t |
| Coefficient of friction dry/wet | 0,8 / 0,7 |
| Roller length | 1100 mm |
| Roller elevation | 50 mm |
| Roller diameter | 280 mm |
| Min. test width | 900 mm |
| Max. test width | 2900 mm |
| Min. wheel diameter | 450 mm |
| Roller axle distance | 438 mm |
| Weight without lifting device approx. | 710 kg |
| Motor connection cable | 7 x 4 mm² |
| Gear ratio | 1 / 17,27 |
| Test speed (low) | 2,3 km/h |
| Test speed (high) | 4,6 km/h |
| Motor revolution speed (low) | 1450 rpm |
| Motor revolution speed (high) | 2950 rpm |
| Roller revolution speed (low) | 43,4 rpm |
| Roller revolution speed (high) | 87,6 rpm |
| Motor power (low) | 2 x 10 kW |
| Motor power (high) | 2 x 12,5 kW |
| ASA livestream | ja Standard |
| Number of test speeds | 2 |
| Assembling case BD 6xxx / 1100 mm | without pit | 1 691 811 083 |
|---|---|
| Assembling case BD 6xxx / 1100 mm | with pit | 1 691 811 084 |
| IR remote control Truck | 1 691 810 704 |
| IR Kit Truck | 1 691 810 702 |
| Testlane PC with a serial interface | 1 691 810 703 |
| PC cabinet Standard | empty | 1 691 811 250 |
| PC gear pack for PC cabinet Standard | 1 691 810 743 |
| Monitor holder 17 - 27" | 1 693 740 884 |
| Monitor holder 22 - 35" | 1 693 740 911 |
| Display RAL 7016 | analog, rectangular | LCD, svivel arm, IR receiver | 1 691 810 750 |
| Stand column aluminium | RAL 7016 | for TV Monitor / rectangular analog display | 1 691 810 722 |
| Pit safety PSC2 | cross | 1 691 810 723 |
| Pit safety PSC2 | cross | 1 691 810 724 |
| Pit safety PSC2 | cross | 1 691 810 725 |
| Pit safety PSC1 | long | 1 691 810 726 |
| Swivel bracket PSC1 | 1 692 100 102 |
| Warn-System for air pressure sensors | 1 691 810 735 |
| Retrofit set for VDO tachograph test BD 6xxx | left | 1 691 811 539 |
| Adaptation kit for Semmler Tachocontrol BD6xxx | left | 1 691 811 126 |
| Digital calibration kit for brake tester | 1 691 601 392 |
| Air pressure sensors | Truck | APS 3 | 1 693 770 658 |
| ASA/APS3 wireless connection kit | Truck | 433Mhz | 1 693 770 673 |
| Kit 4x drive-over plates | BD6xxx & BD8xxx | 1000mm & 1100mm | 1 691 810 717 |
